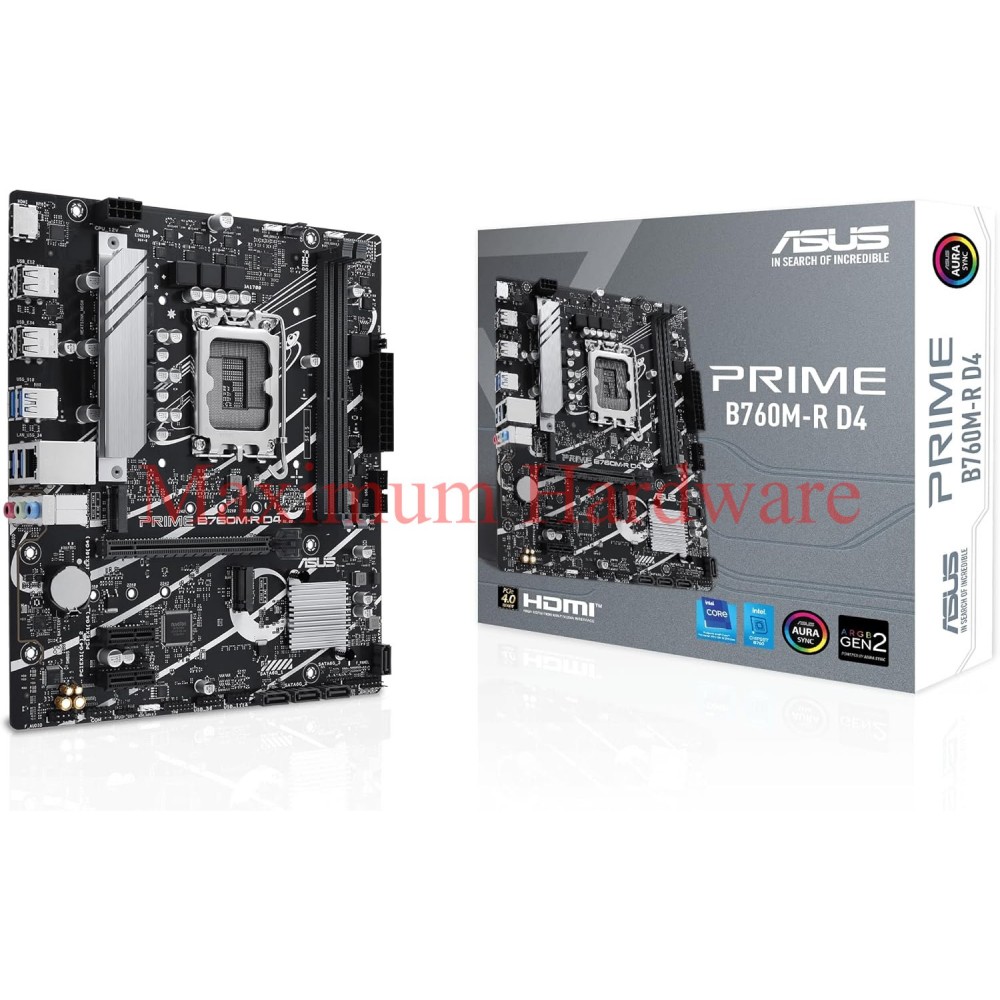

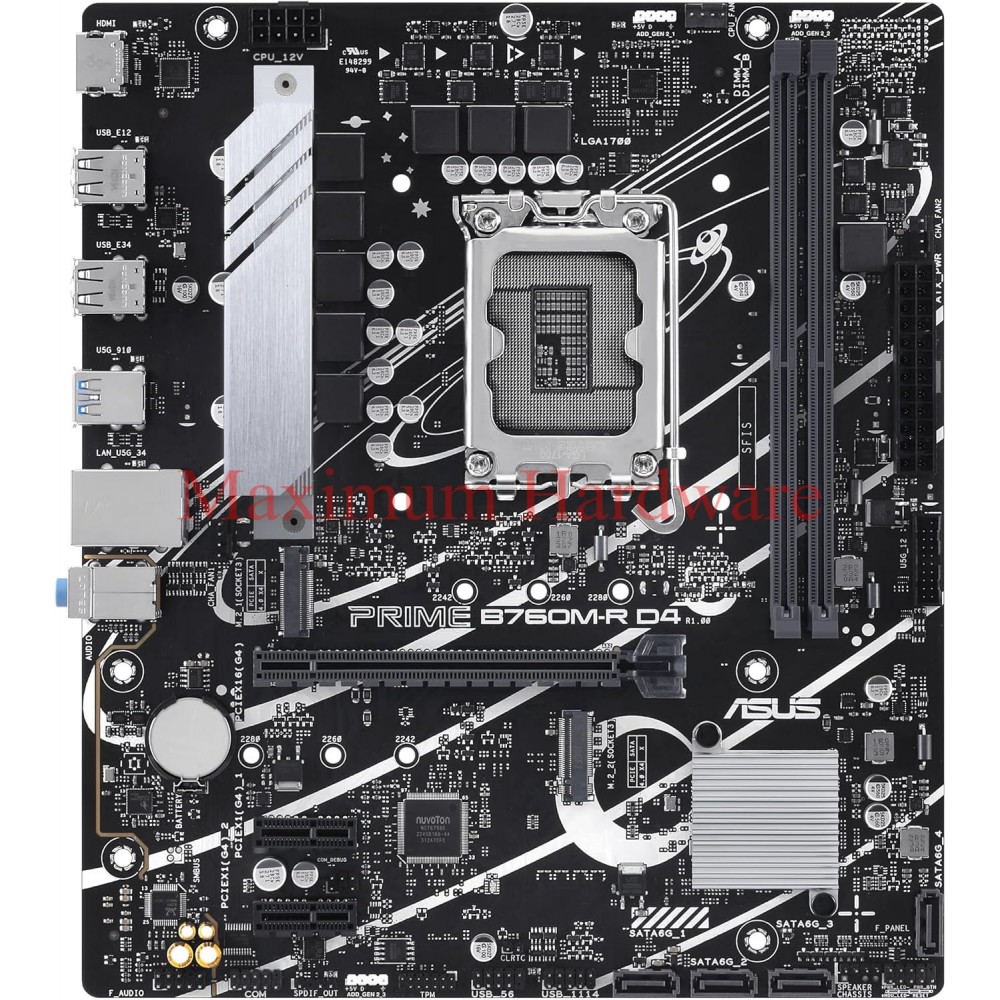

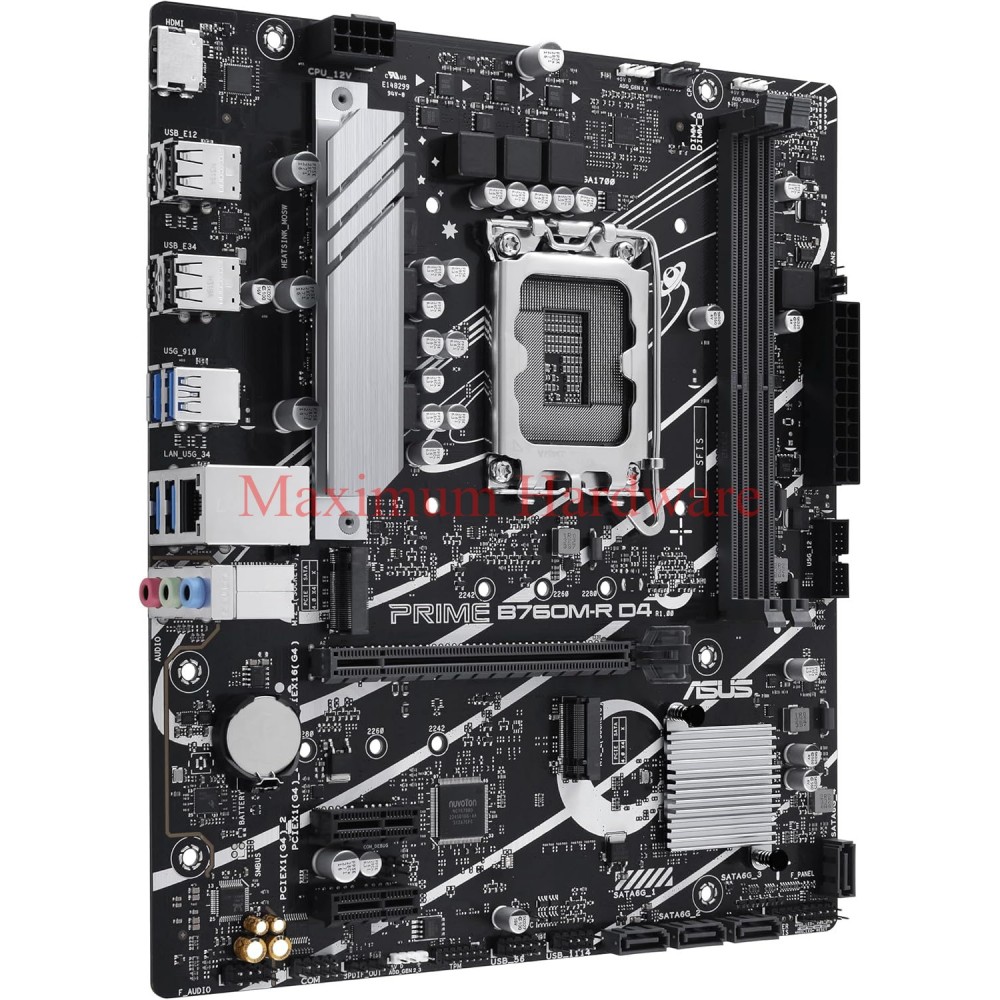

ASUS PRIME B760M-R D4
from
4,499.00 EGP
- Stock: In Stock
- Brand: Asus
- Model: PRIME B760M-R D4
Ask a Question About This Product
| Brand | ASUS |
|---|---|
| Model | PRIME B760M-R D4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Feature | DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| PCI Express 4.0 x16 | Intel 14th &13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x16 slot (supports x1 mode) |
|---|
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | Intel 14th &13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| SATA RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
|---|

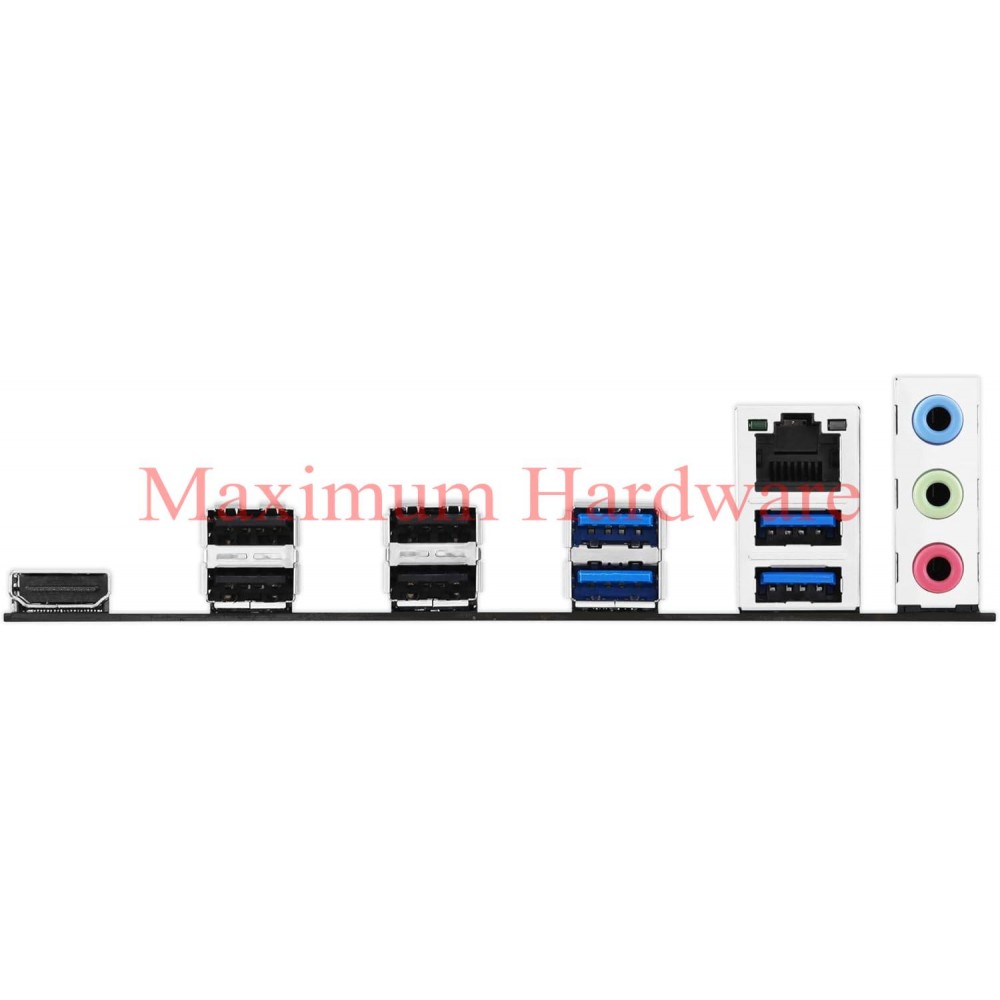

| Back I/O Ports | 4 x USB 3.2 Gen 4 ports (4 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI ports 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 headers support 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header with Chassis intrude function |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Addressable Gen 2 RGB headers |
|---|

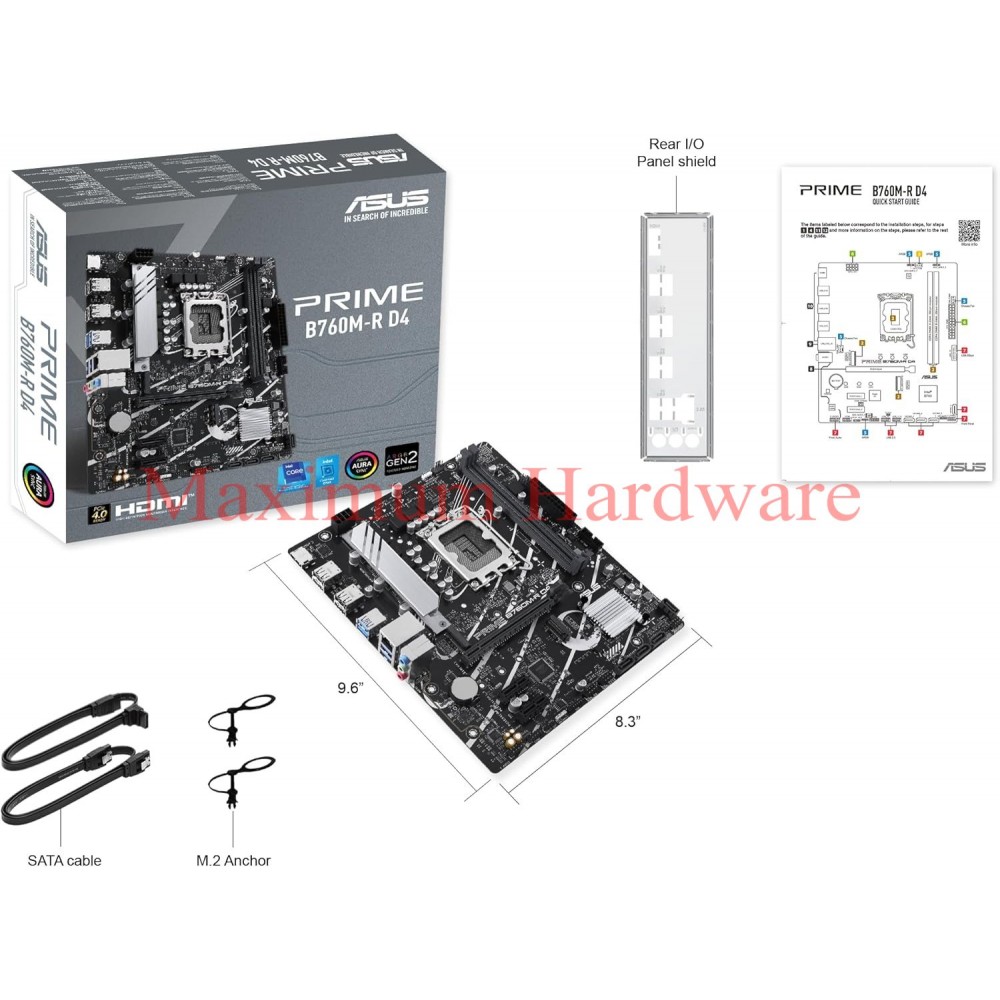

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide |
|---|
