Out Of Stock
MSI B850M-A WIFI PZ
from
10,499.00 EGP
- Stock: Out Of Stock
- Brand: Msi
- Model: PRO B850M-A WIFI PZ
Ask a Question About This Product
| Brand | MSI |
|---|---|
| Model | PRO B850M-A WIFI PZ |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B850 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s |
| Maximum Memory Supported | 256GB |
| Channel Supported | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Memory Feature | 8200+ MT/s (OC) |
| PCI Express 5.0 x16 | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|---|---|
| PCI Express x4 | 1 x PCIe 4.0 x4 slot |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Audio Chipset | Realtek® ALC897 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio |
| LAN Chipset | Realtek® 8126 5G LAN |
|---|---|
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |

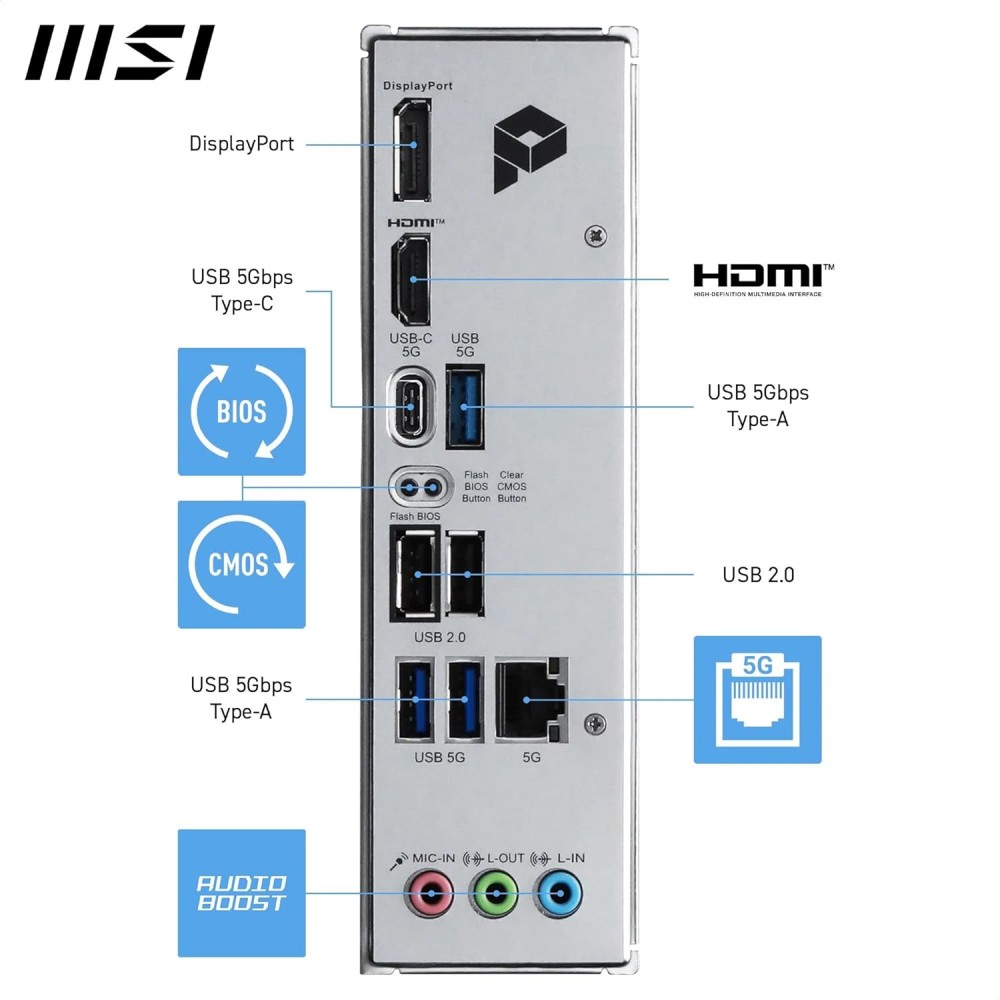

| Back I/O Ports | 1 x Clear CMOS Button / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 2 x Antenna Bracket / 2 x USB 3.1 Gen 1 Type-A / 2 x USB 3.1 Gen 2 Type-A / 2 x USB 3.2 Gen 2 Type-C / 3 x Audio Jacks |
|---|
| Onboard USB | 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
|---|---|
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 243.84mmx243.84mm |
| Windows 11 | Support for Windows® 11 64-bit |
|---|

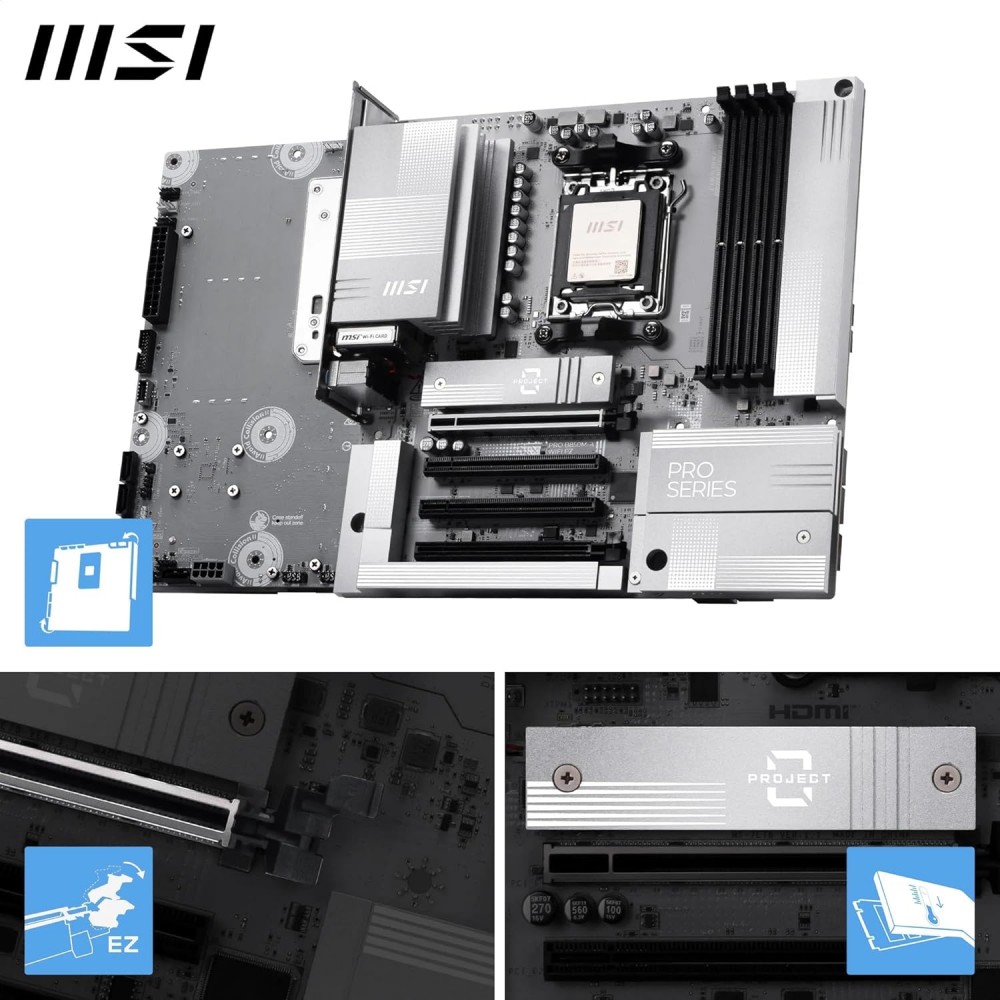

| Features | MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. 4x EZ Debug LED 1x EZ Memory Detection LED Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Back-Connect Design The PRO B850M-A WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system. DIRECT 8+2+1 POWER DESIGN Unleash and sustain the maximum performance with a VRM design built with a total of 8+2+1 digital power phases. With 8+4-pin power connectors, PRO B850M-A WIFI PZ is ready for the challenge of heavy-loading tasks. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. |
|---|
