MSI MAG X870E GAMING PLUS MAX WIFI

MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
Out Of Stock
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
MSI MAG X870E GAMING PLUS MAX WIFI
from
14,799.00 EGP
  • Stock: Out Of Stock
  • Brand: Msi
  • Model: MAG X870E GAMING PLUS MAX WIFI
Model
BrandMSI
ModelMAG X870E GAMING PLUS MAX WIFI
Part NumberMAG X870E GAMING PLUS MAX WIFI
Supported CPU
CPU Socket Type AM5
CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Chipsets
Chipset AMD X870E
Memory
Number of Memory Slots4x DDR5 UDIMM
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s
Maximum Memory Supported256GB
Channel Supported Dual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Expansion Slots
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
PCI Express x162 x PCI Express x16
PCI Express x11 x PCI Express x1
Storage Devices
Serial ATA (SATA) 4x SATA 6G
M.23 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M.2_2 slot (From CPU)
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

M.2_3 slot (From CPU)
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetRealtek 8126VB
Max LAN Speed5Gbps
BluetoothYes

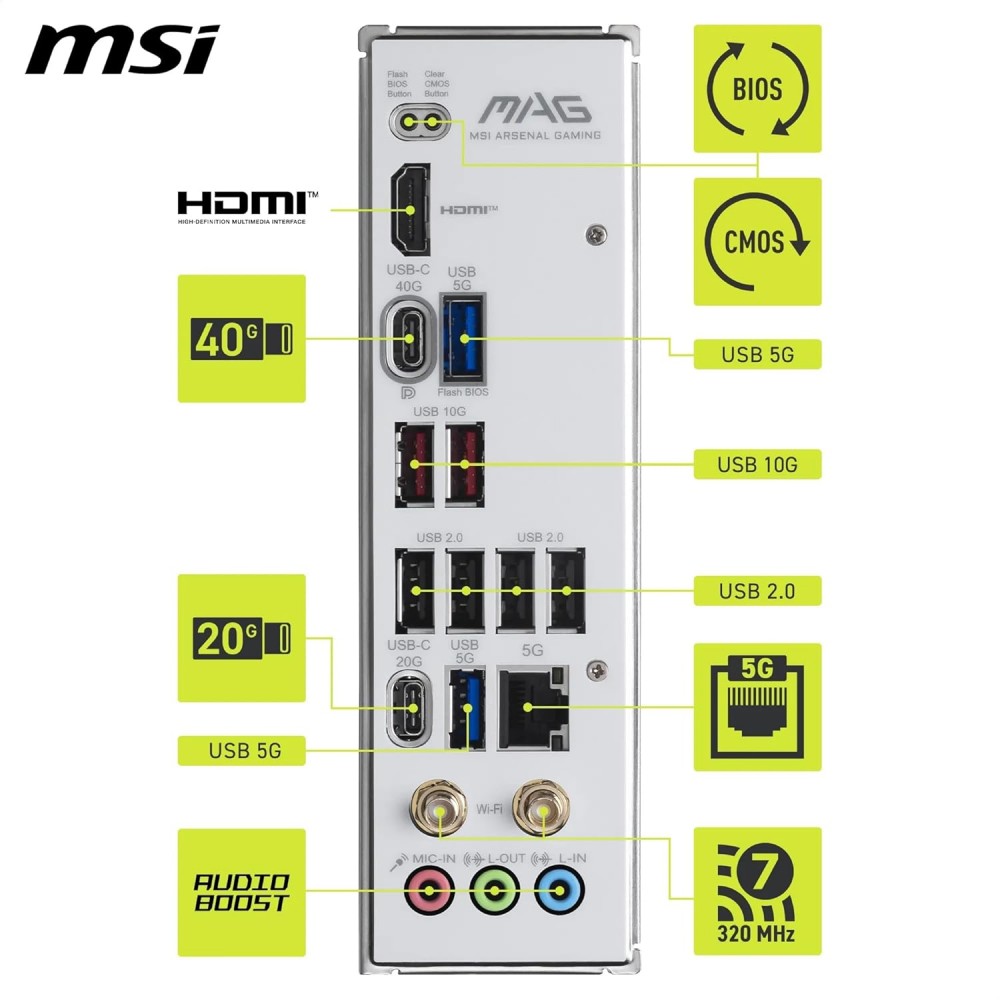

Rear Panel Ports
Back I/O Ports4 x USB 2.0
2 x USB 5Gbps Type A
2 x USB 10Gbps Type A
1 x USB 20Gbps Type C
1 x USB 40Gbps Type C
1 x HDMI
HDMI 1 x HDMI
DisplayPort1 x DisplayPort
Internal I/O Connectors
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 6 x USB 2.0
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
Physical Spec
Form FactorATX
LED LightingNone RGB
Dimensions (W x L)243.84mm x 304.8mm
Software Feature
Windows 11Supported
Features

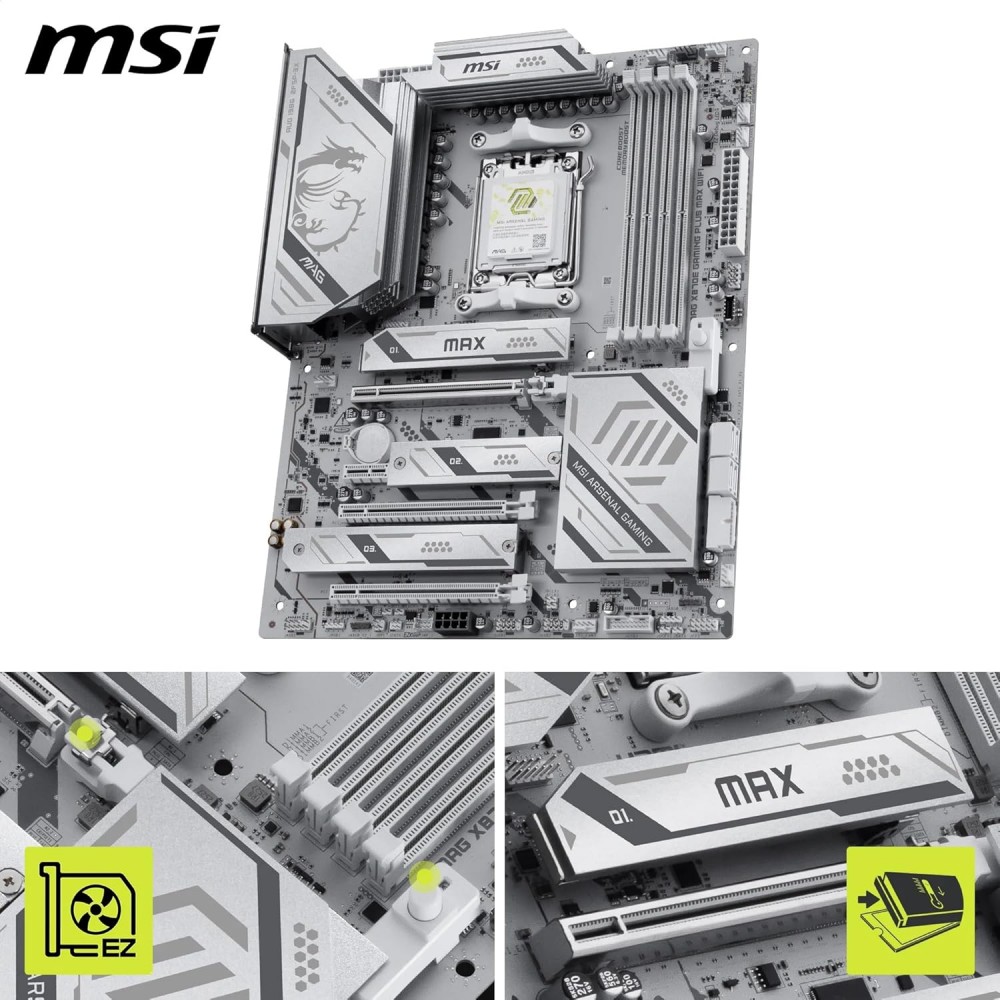

Features4x EZ Debug LED
1x EZ Memory Detection LED
