Out Of Stock

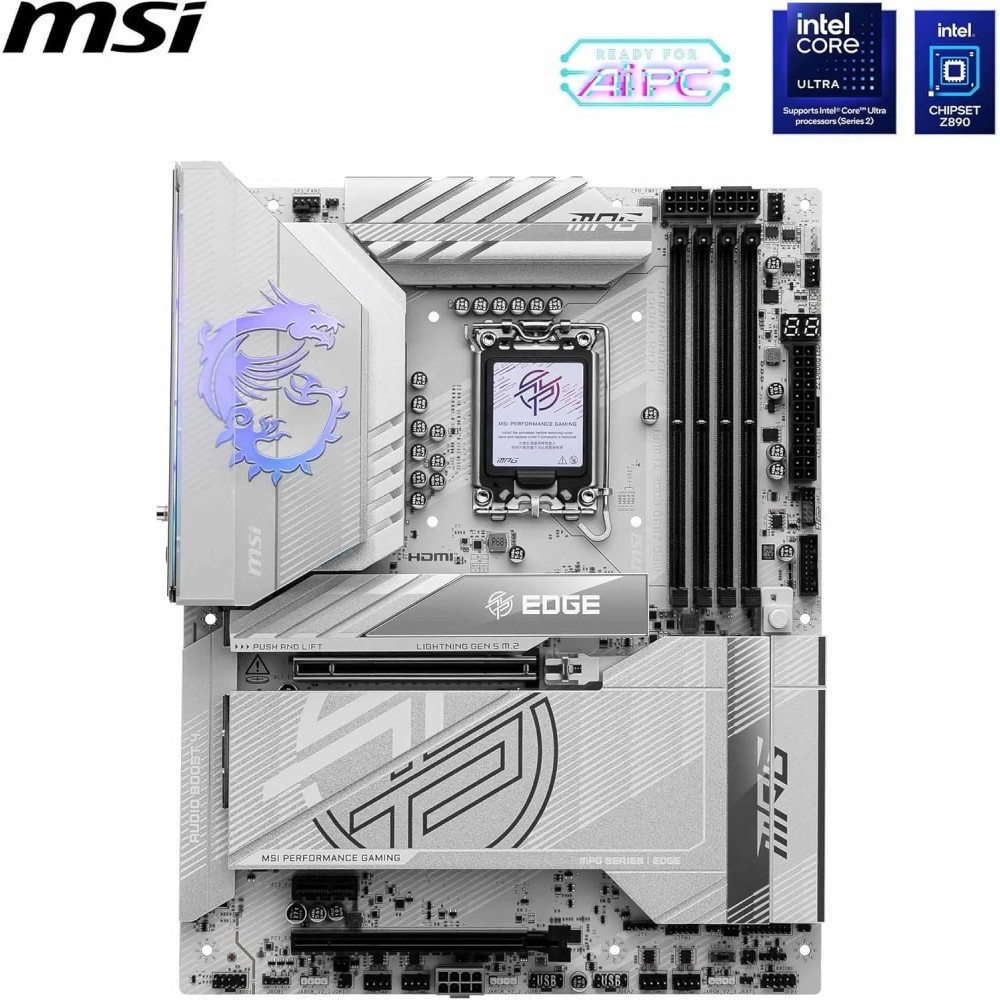

MSI MPG Z890 EDGE TI WIFI (LGA 1851)
from
22,499.00 EGP
- Stock: Out Of Stock
- Brand: Msi
- Model: MPG Z890 EDGE TI
Ask a Question About This Product
| Brand | MSI |
|---|---|
| Series | MPG Z890 EDGE TI |
| CPU Socket Type | LGA 1851 |
|---|---|
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Feature | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: - 1DPC 1R Max speed up to 9200+ MT/s - 1DPC 2R Max speed up to 7200+ MT/s - 2DPC 1R Max speed up to 4800+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express x4 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI Express x1 | PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) * PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|

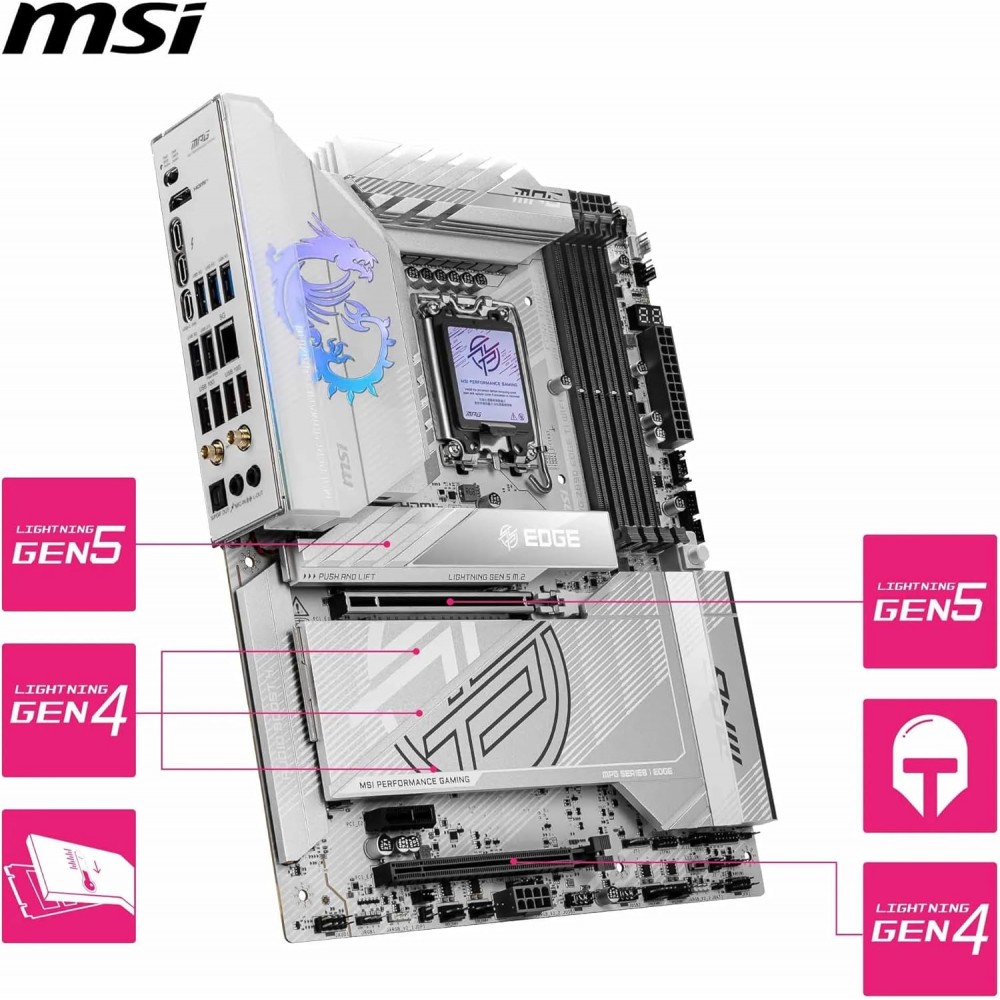

| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices |
| Audio Channels | 7.1 Channels |
|---|
| LAN Chipset | Intel Killer E5000B 5G LAN |
|---|---|
| Max LAN Speed | 5Gbps |
| Wireless LAN | Intel Killer BE1750x Wi-Fi 7 |
| Bluetooth | Yes |

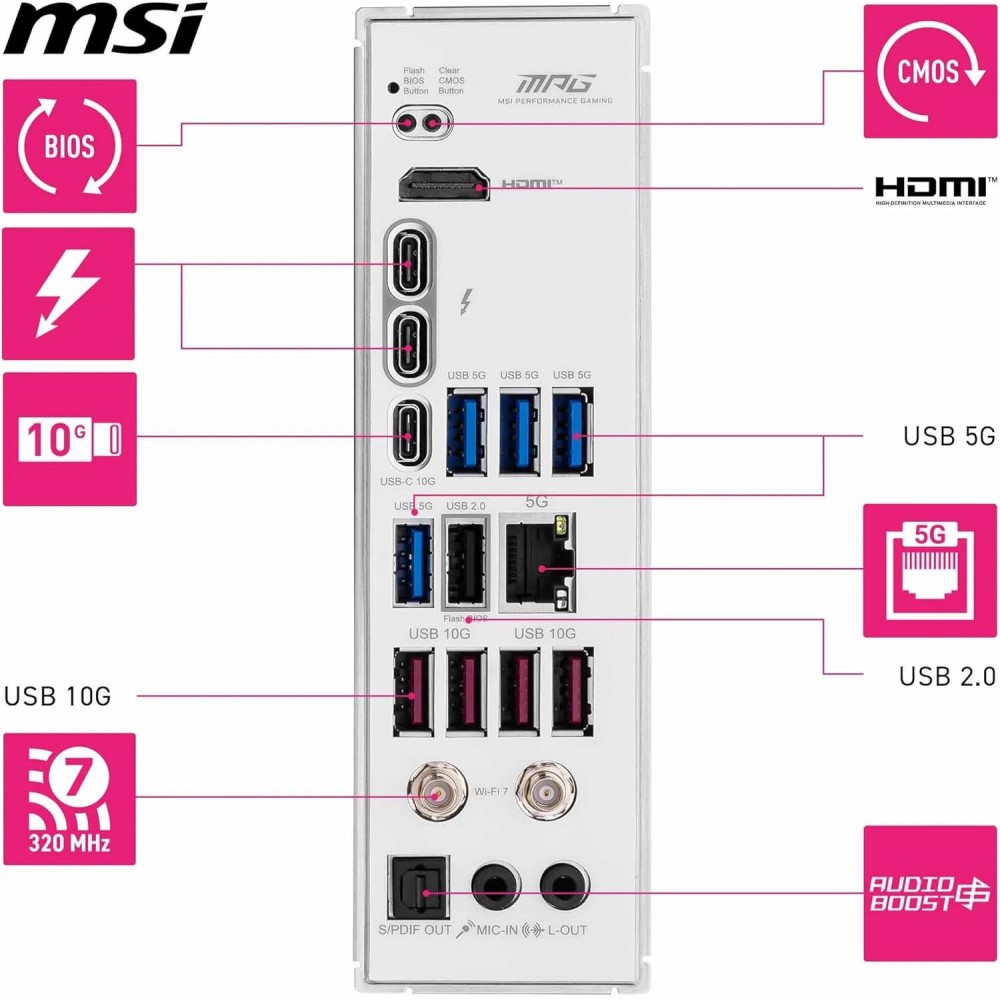

| Back I/O Ports | 1 x Audio Jack / 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 2.0/1.1 / 1 x USB 3.1 Gen 2 Type-C / 2 x Thunderbolt 4 / 4 x USB 3.0 / 4 x USB 3.1 Gen 2 Type-A |
|---|
| Onboard USB | 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports |
|---|---|
| Other Connectors | 1 x Thunderbolt5 card connector(JTBT5, support RTD3) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Thermal Sensor connectors(T_SEN) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | 4 x EZ Debug LED 1 x EZ Digit Debug LED |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) |
