New

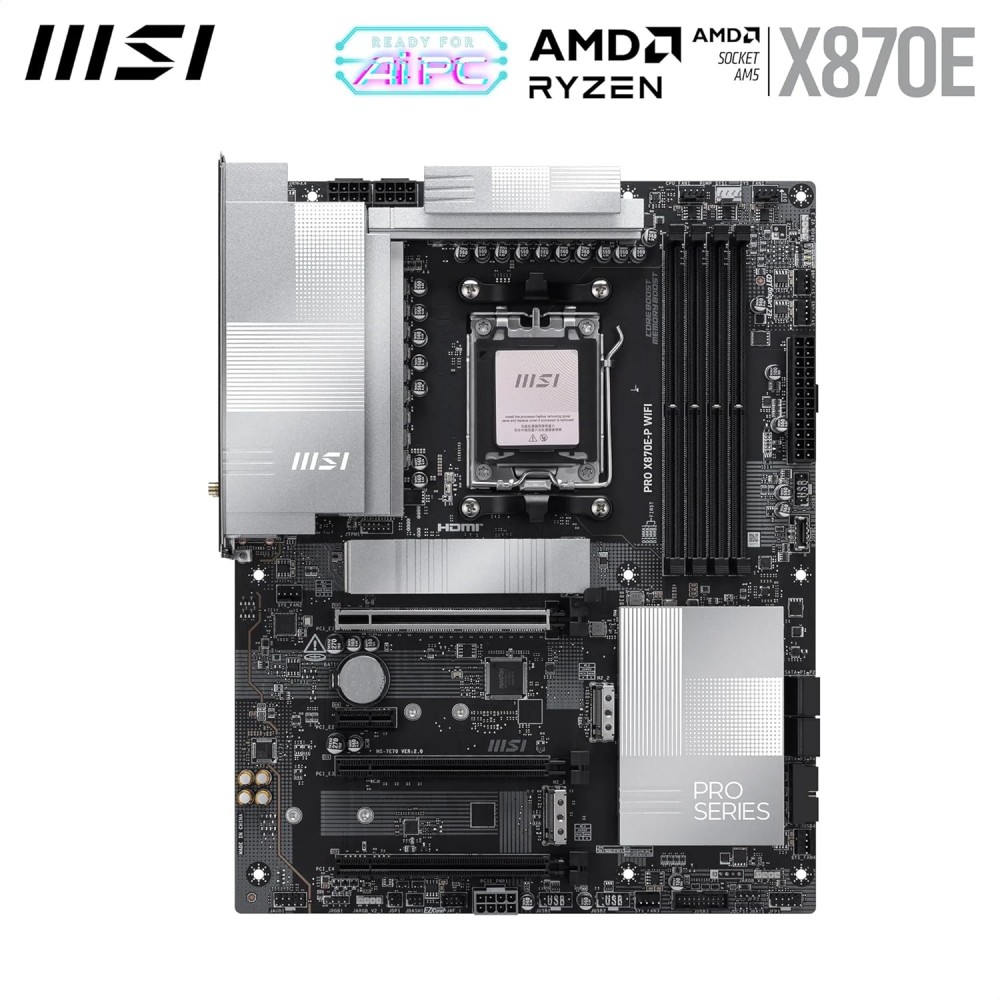

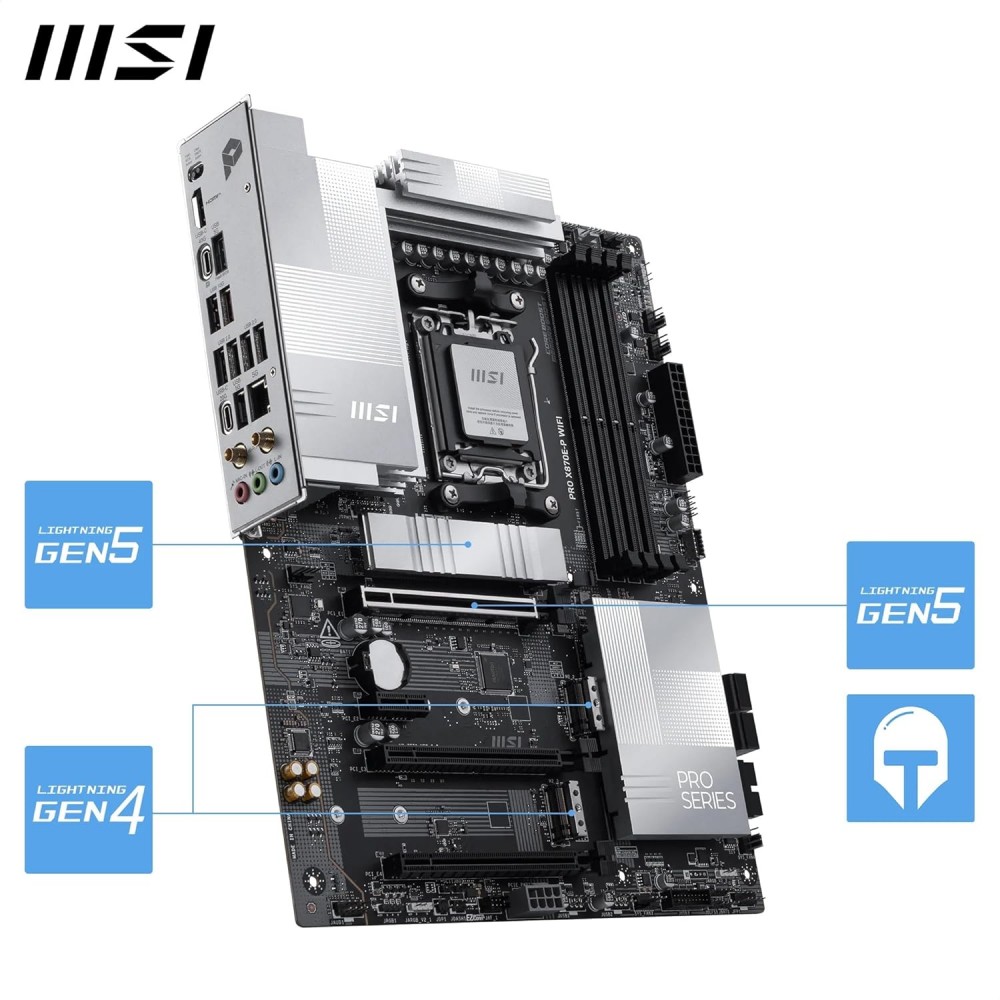

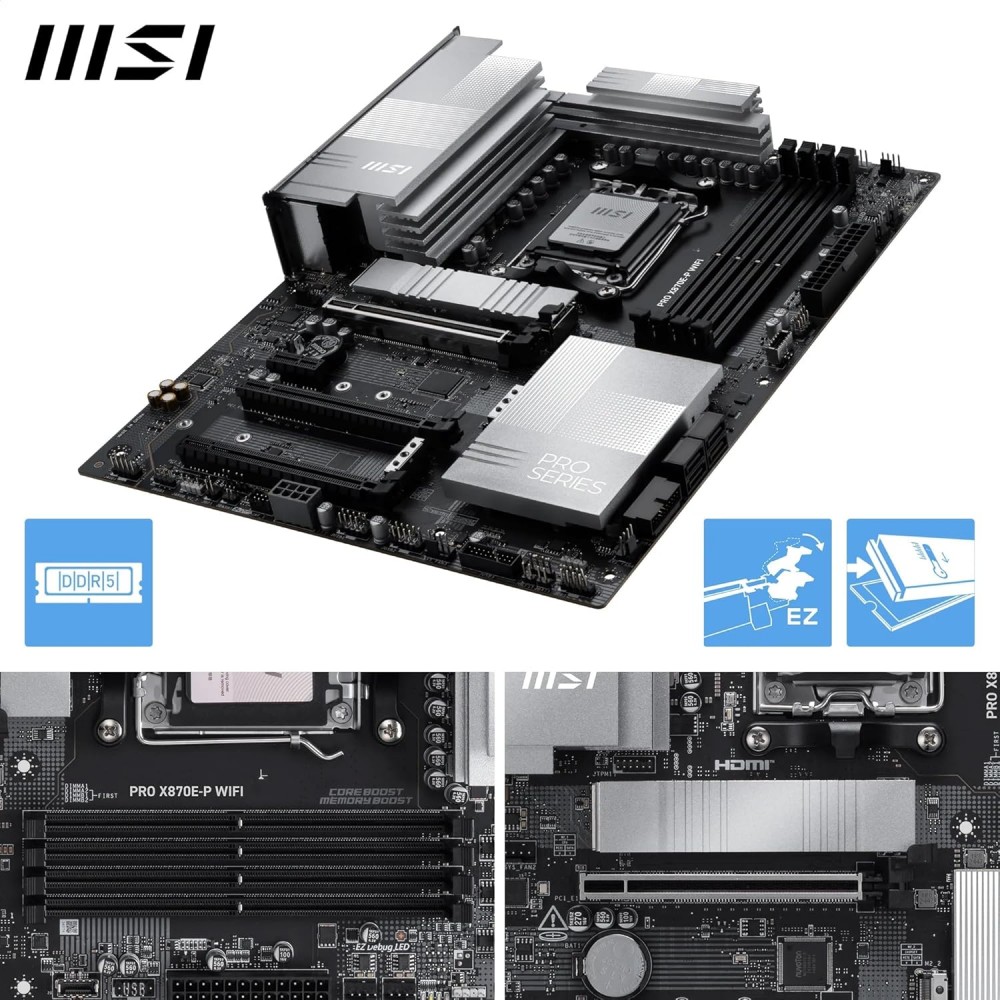

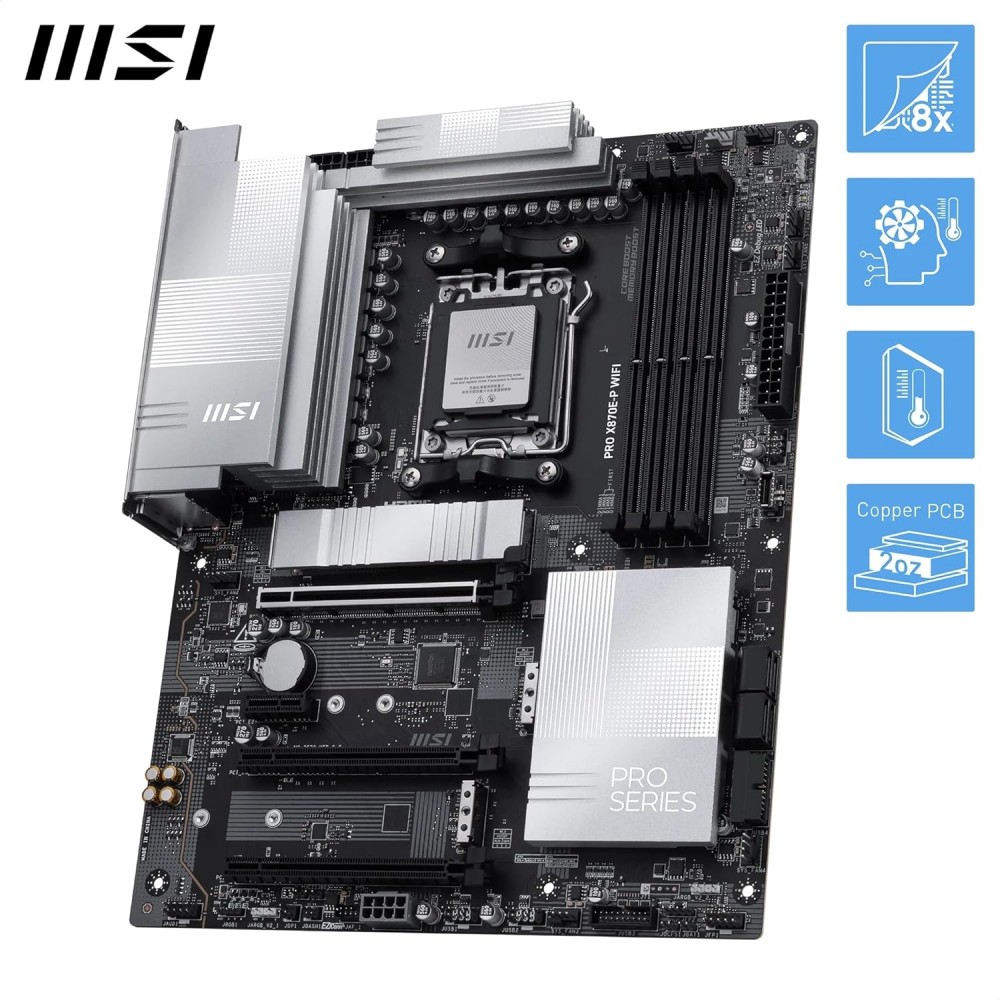

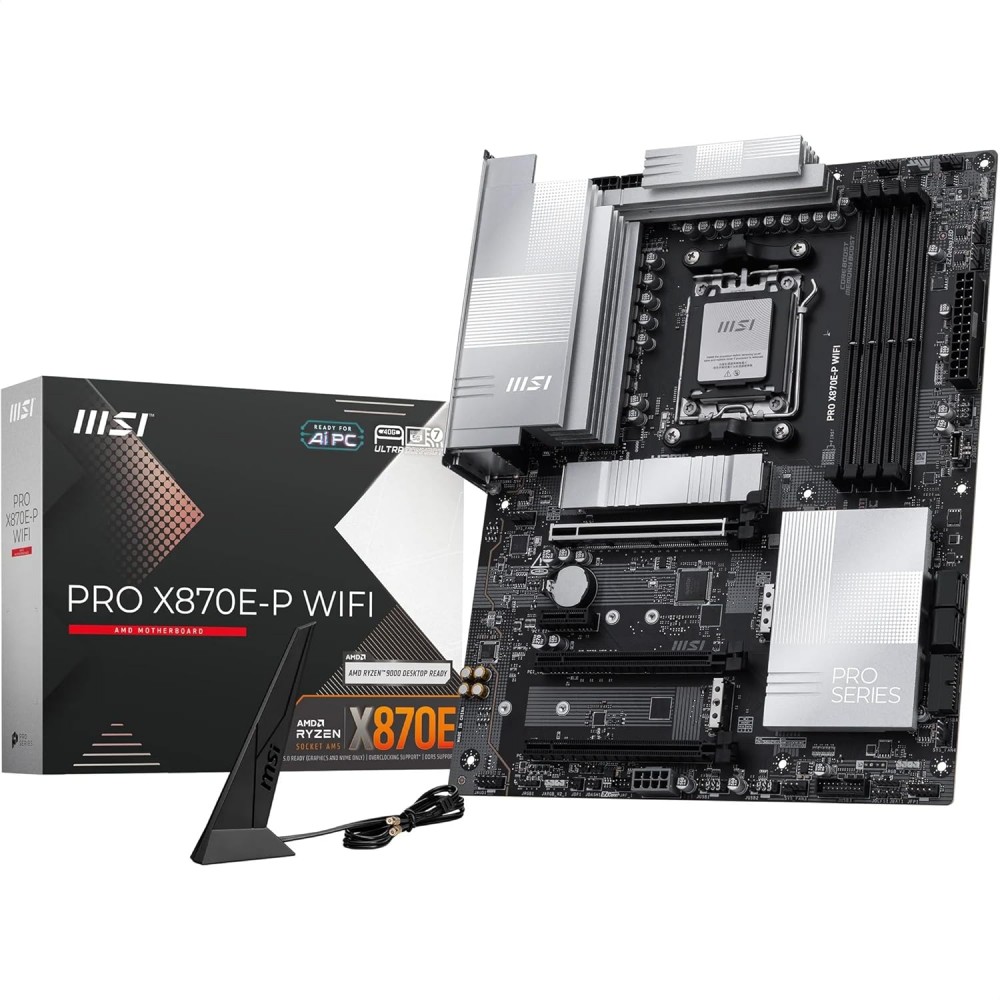

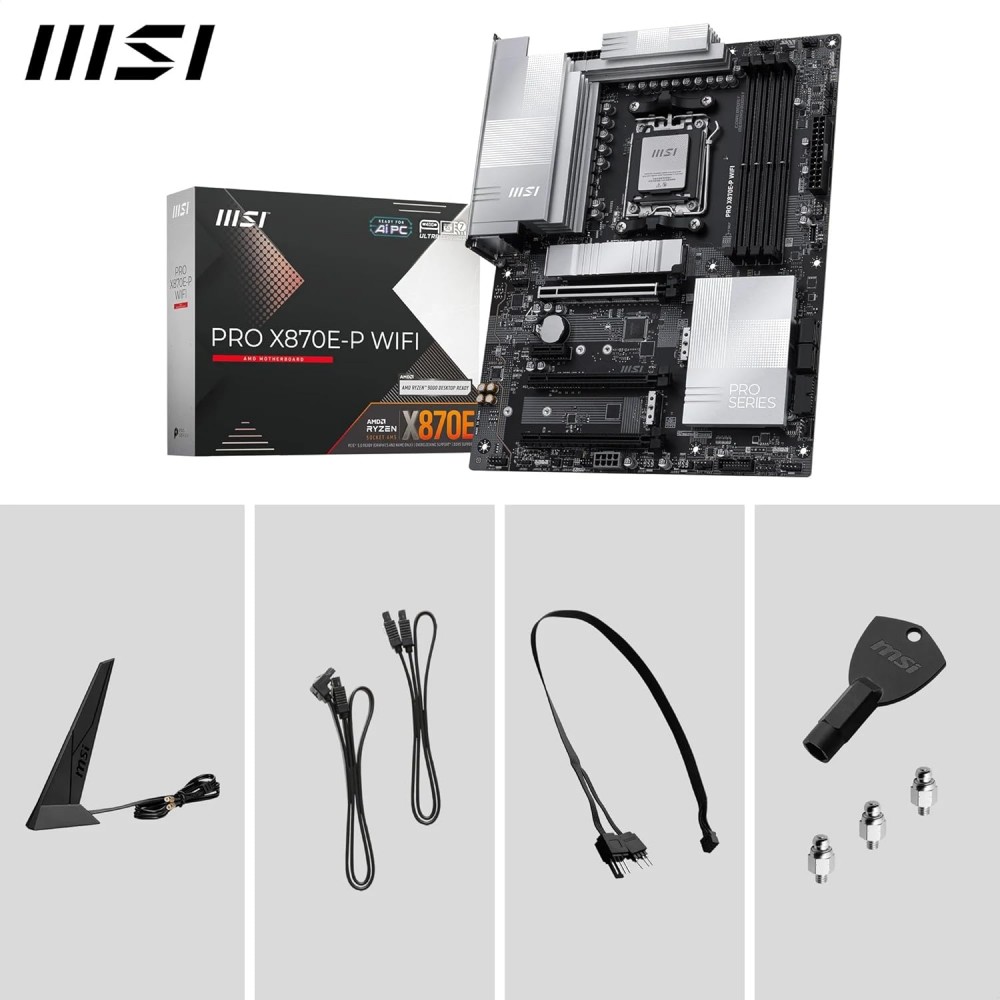

MSI PRO X870E-P WIFI
from
12,999.00 EGP
- Stock: In Stock
- Brand: Msi
- Model: PRO X870E-P WIFI
Ask a Question About This Product
| Brand | MSI |
|---|---|
| Model | PRO X870E-P WIFI |
| Part Number | PRO X870E-P WIFI |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit MSI official website. |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x1 | 2 x PCIe 3.0x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 Gen5 x4 128Gbps slots, 2 x M.2 Gen4 x 4 64 Gbps slots, |
| LAN Chipset | Realtek@ 8126 5G LAN |
|---|---|
| Wireless LAN | Wi-Fi 7 Solution, |
| Bluetooth | Bluetooth 5.4 |
| HDMI | Support 4K@60Hz as specified in HDMITM 2.1 |
|---|---|

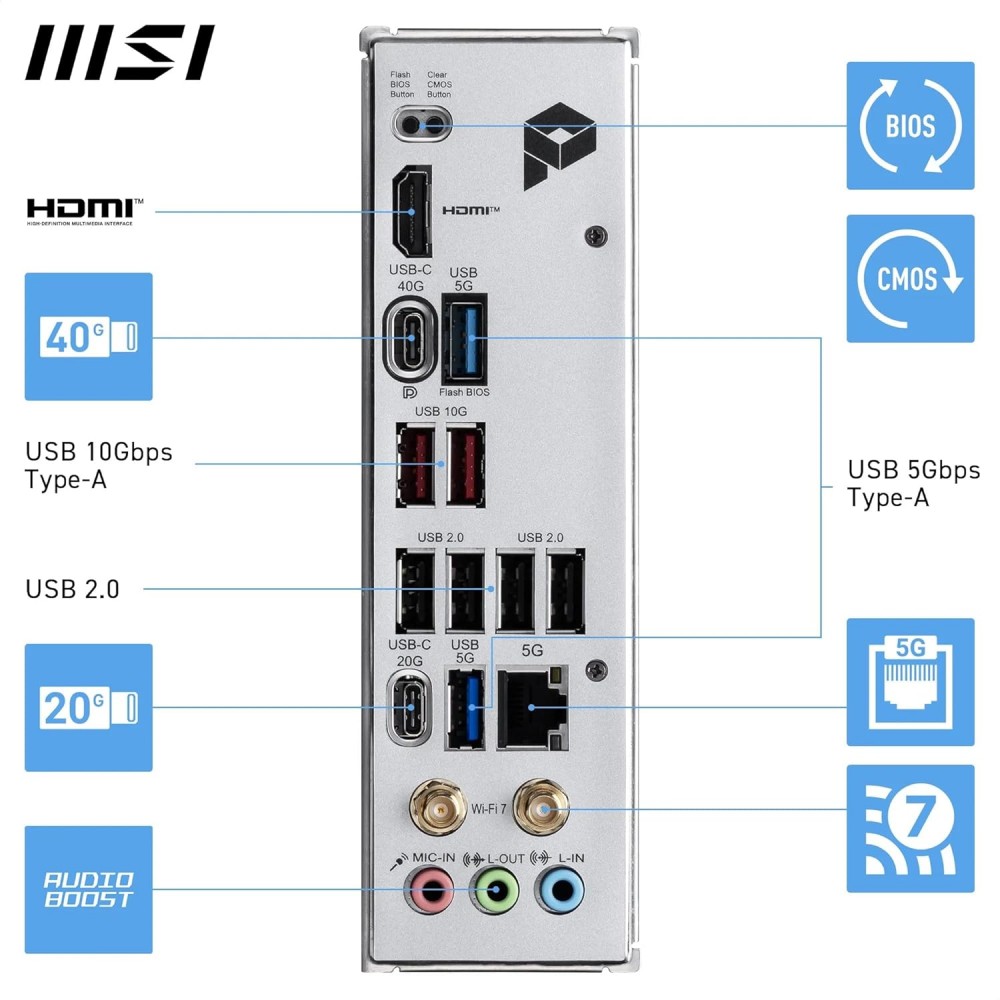

| RJ45 | 1 x RJ45 |
| USB 3.1 | 2x USB 10Gbps Type-A 1 x USB 5Gbps Type- A |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB Type-C | 1 x USB4 port supports USB Type-C display output, - Requires Processor Graphics 1 x USB 20Gbps Type-C |
| Audio Ports | 8-Channel(7.1) HD Audio with Audio Boost. |
| Form Factor | ATX |
|---|
