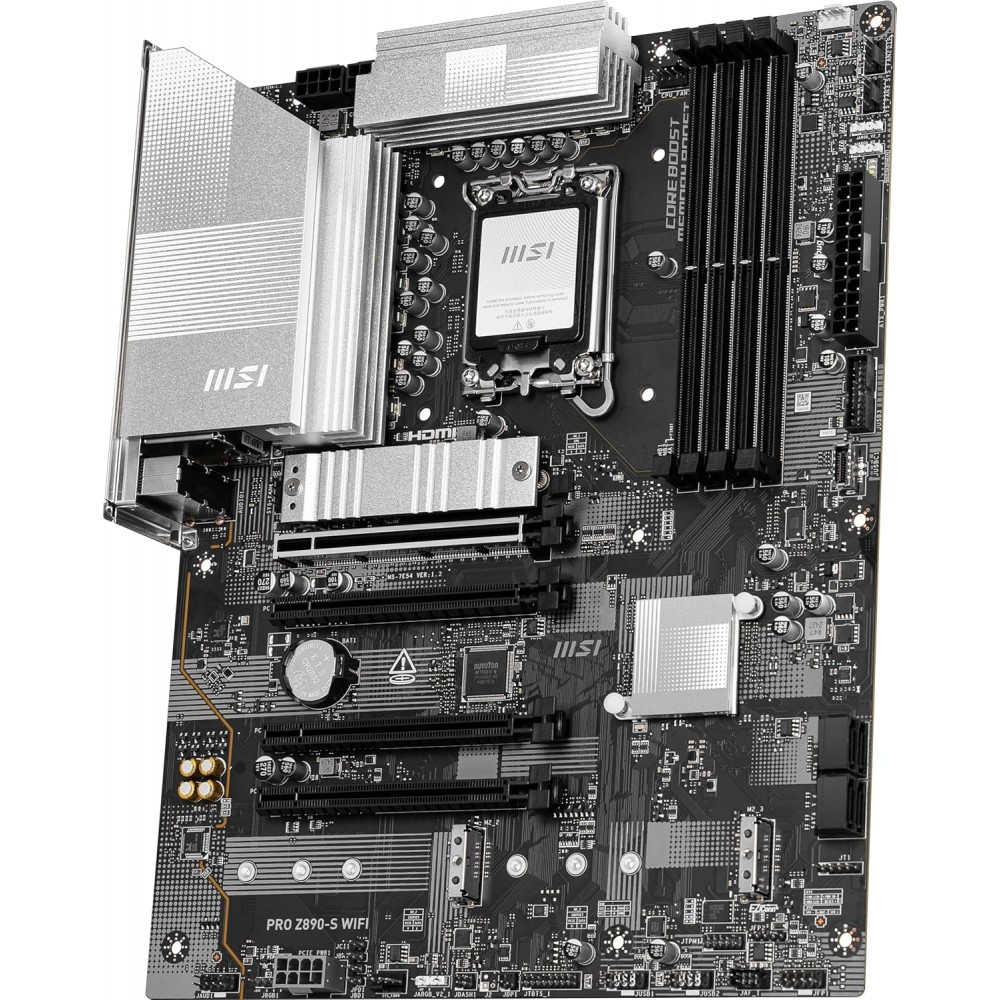

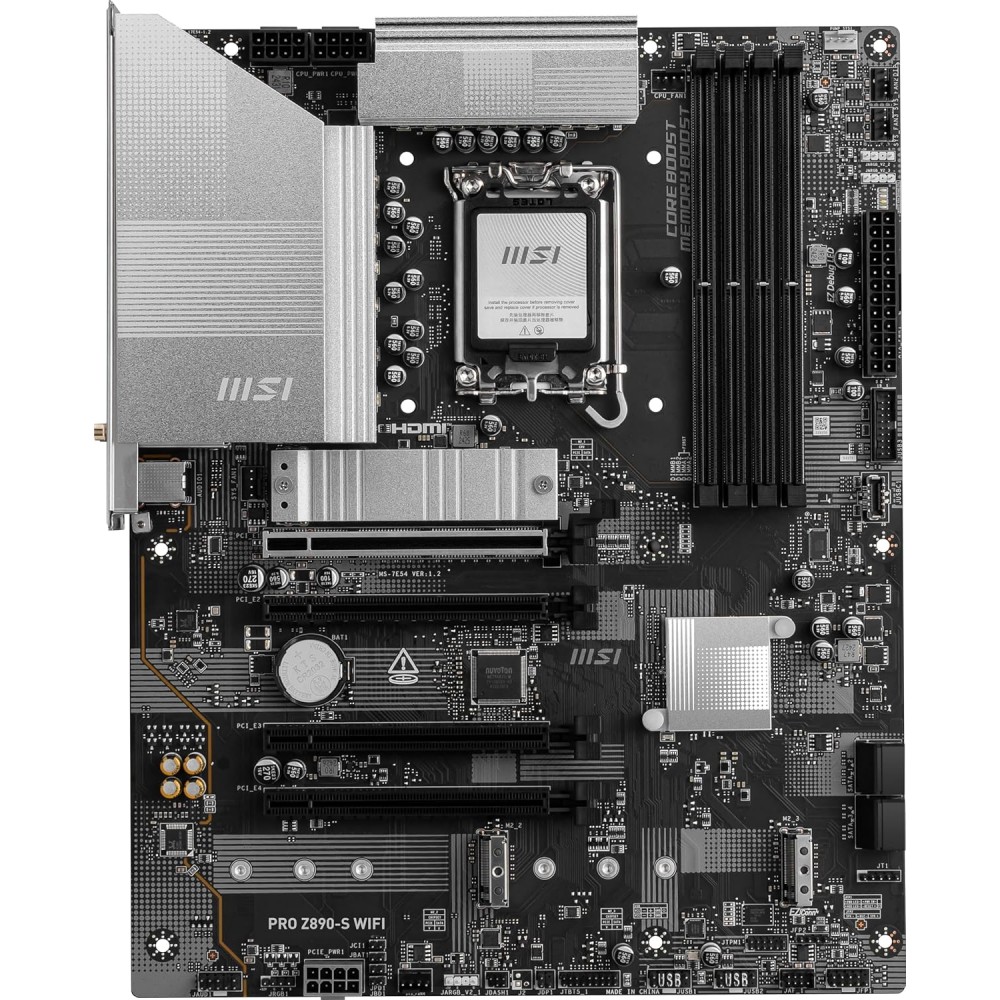

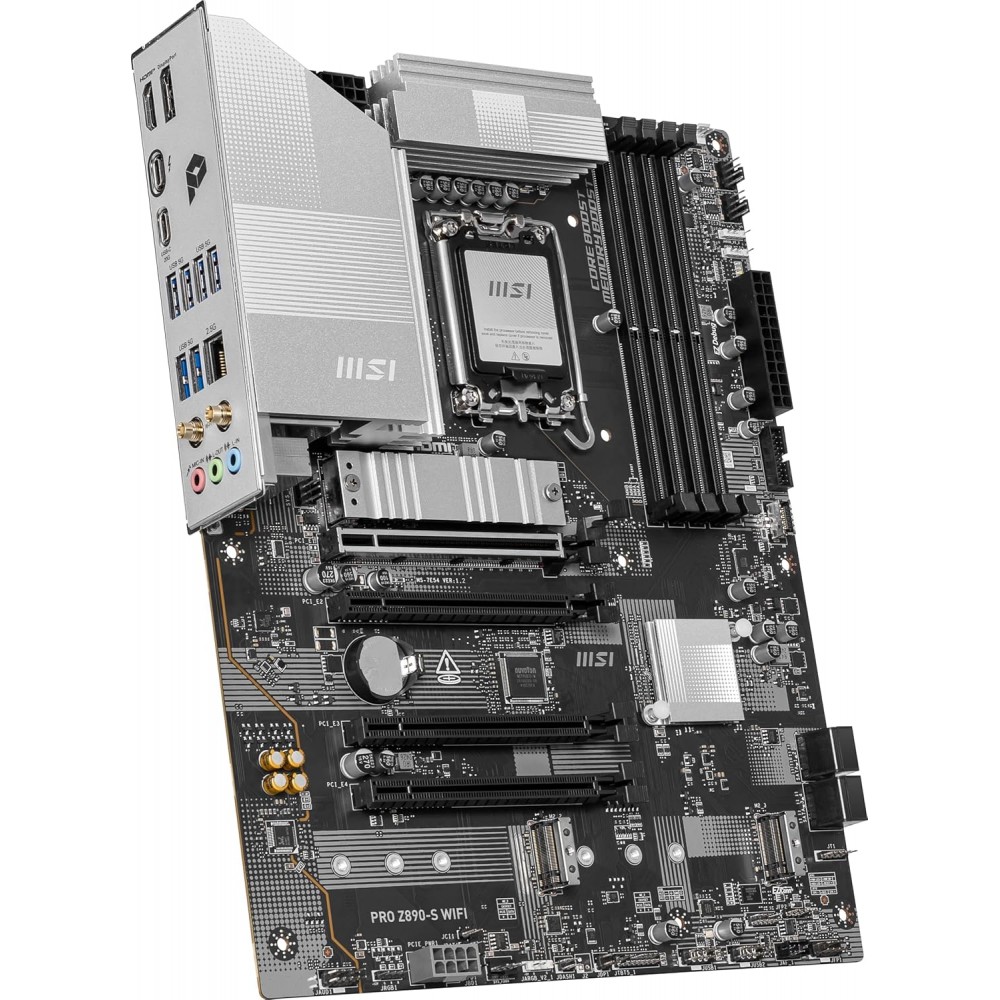

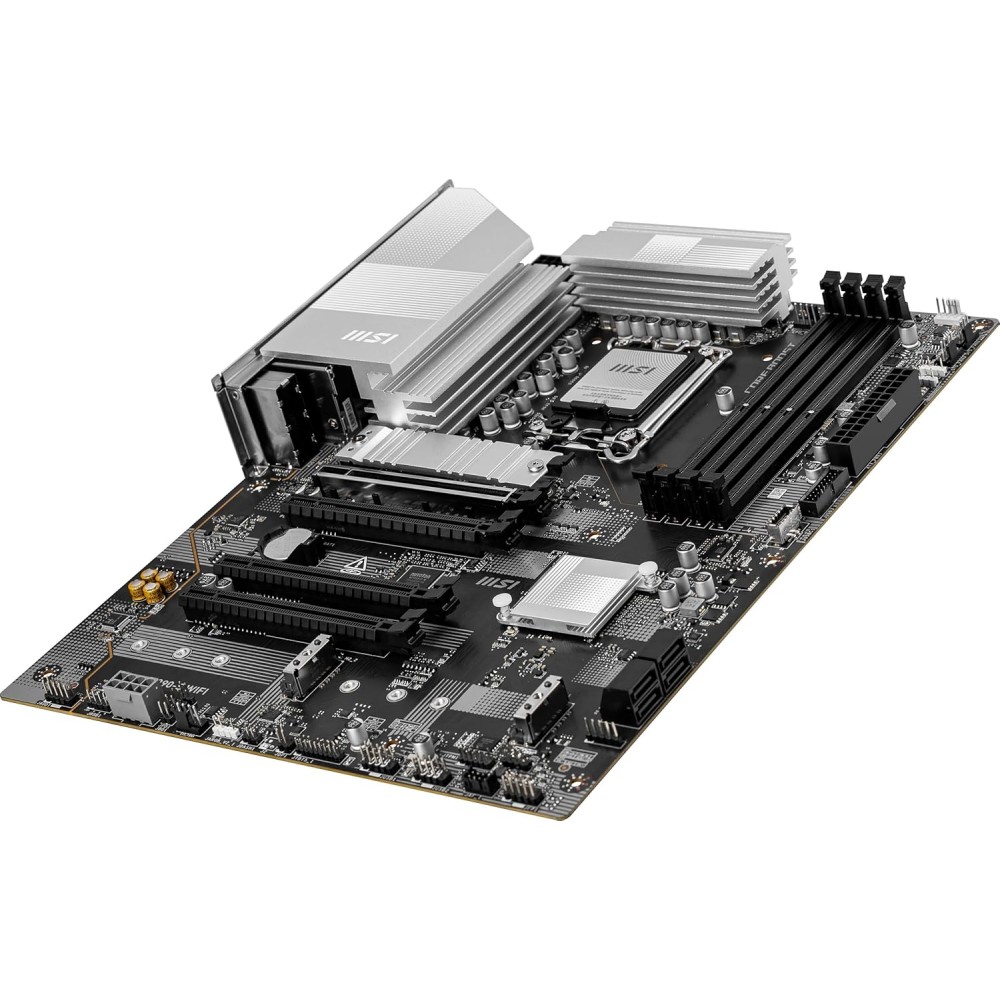

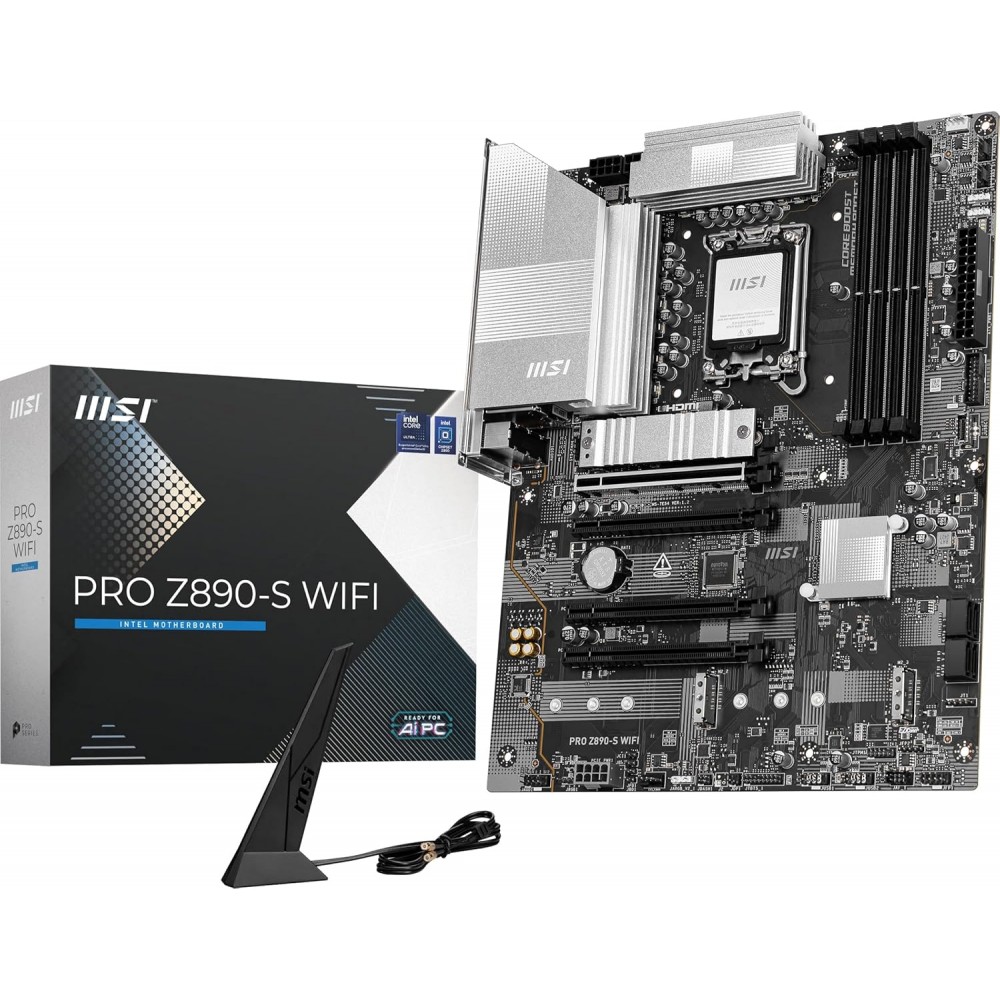

MSI PRO Z890-S WIFI (LGA 1851)

Description
Reviews

Model
Brand	MSI
Model	PRO Z890-S WIFI

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: - 1DPC 1R Max speed up to 8600+ MT/s - 1DPC 2R Max speed up to 7200+ MT/s - 2DPC 1R Max speed up to 4800+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM

Expansion Slots
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x Key M (PCIe/SATA) + 2 x Key M (PCIe) + 1 x Key E (WiFi/BT)

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	RTL8125D-CG
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Yes

Rear Panel Ports
Back I/O Ports	1 x Audio Jack / 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Thunderbolt 4 / 1 x USB 3.2 Gen 2x2 Type-C / 6 x USB 3.0

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX

Secure Shopping

Fast Shipping

Easy Return

Tags: MSI PRO Z890-S WIFI (LGA 1851) , PRO Z890-S WIFI , Intel Motherboards
