Name: MSI X870 GAMING PLUS WIFI
Brand: Msi
Price: 14500.00 EGP
Availability: InStock

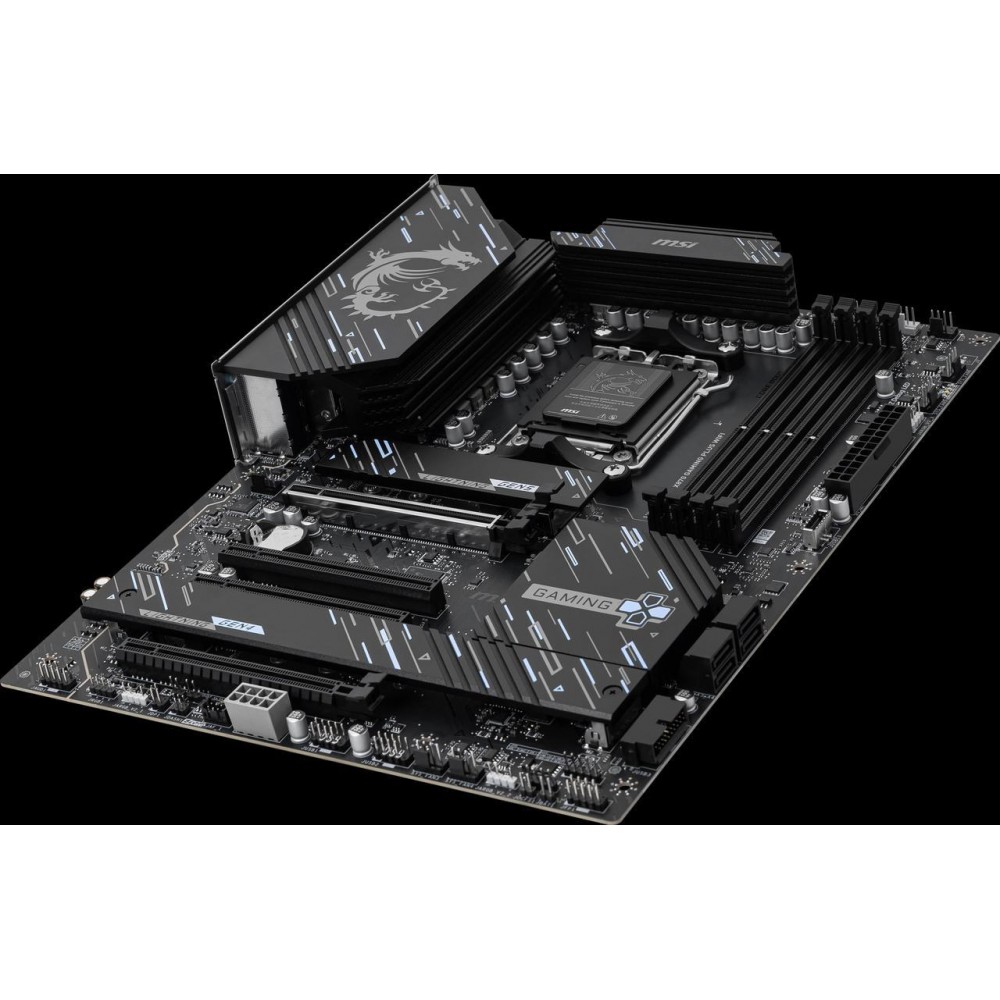

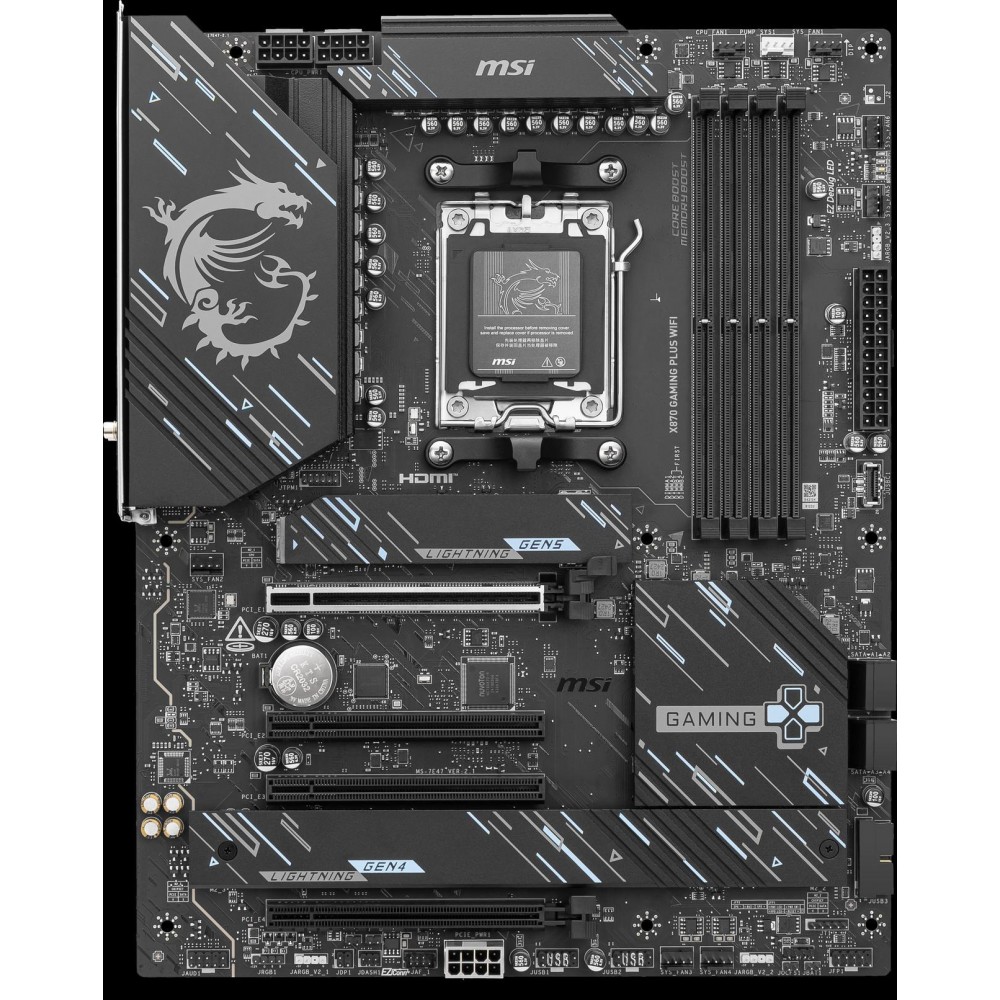

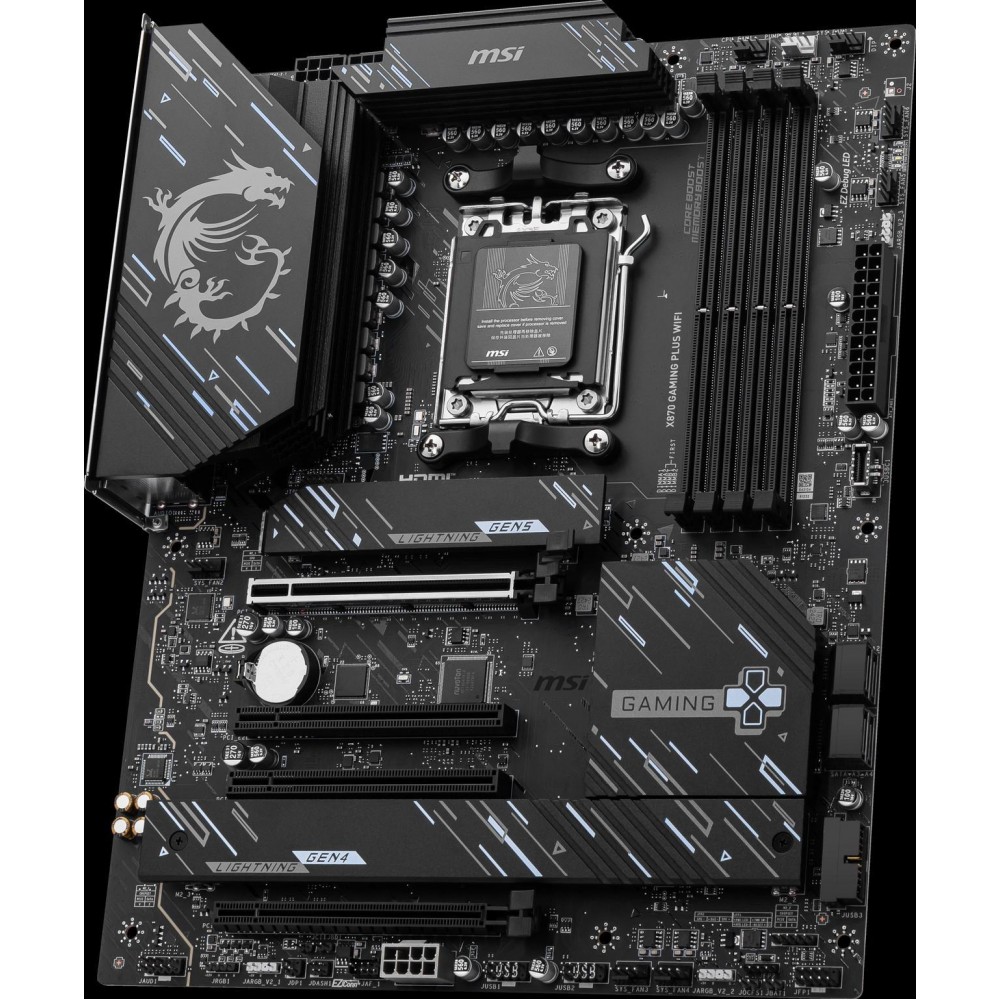

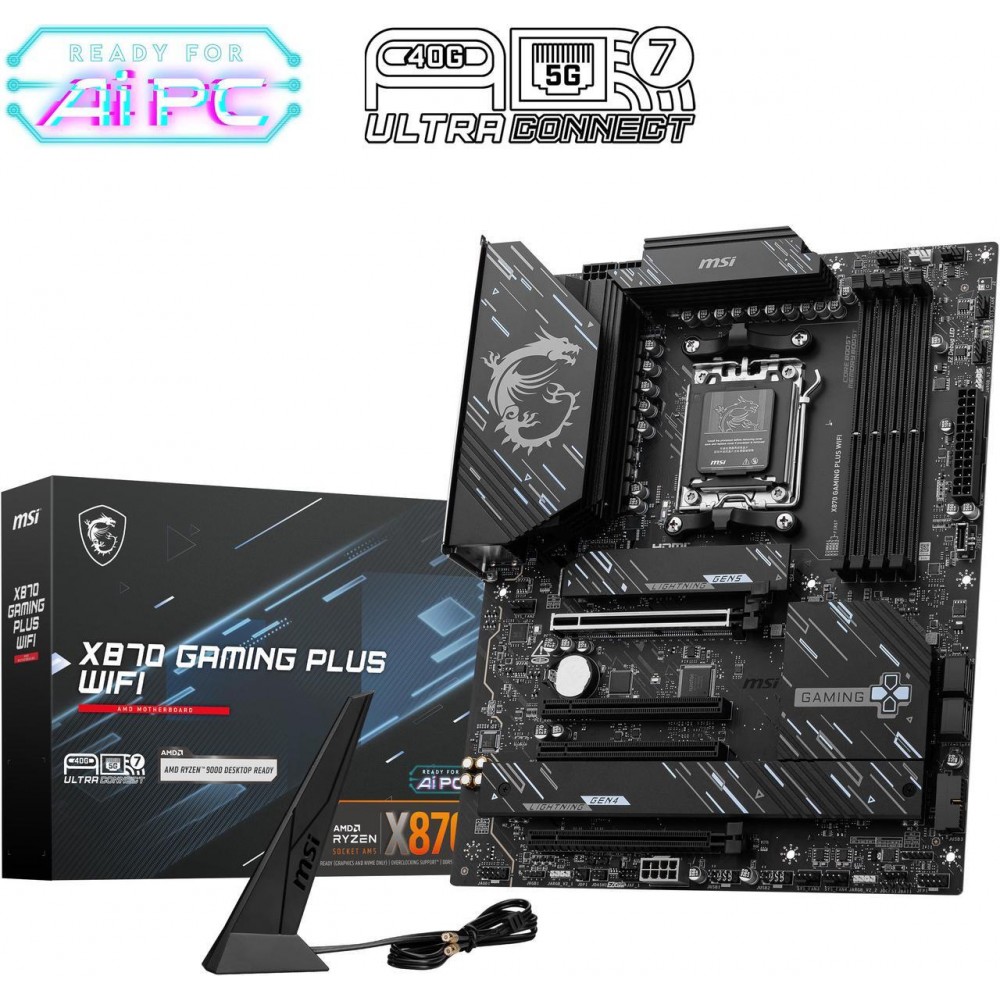

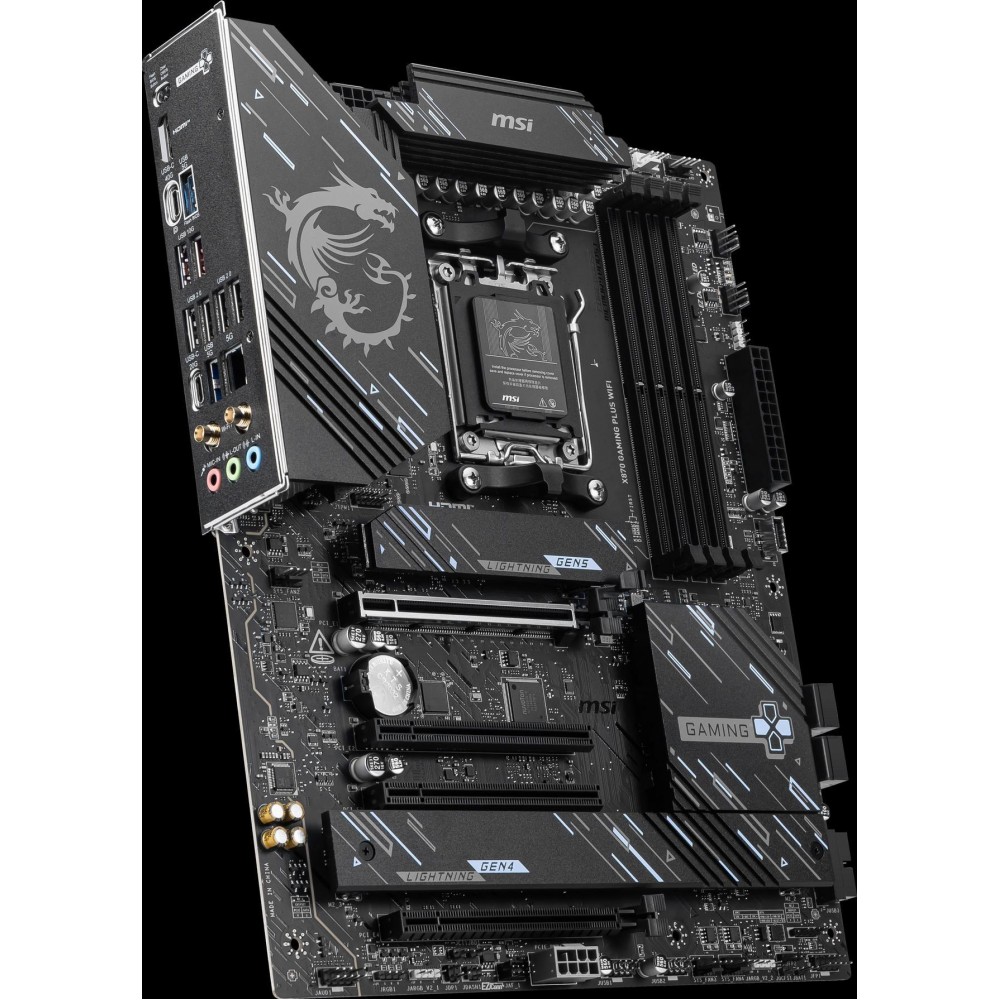

MSI X870 GAMING PLUS WIFI

from

14,500.00 EGP

Qty

Model
Brand	MSI
Model	X870 GAMING PLUS WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: - 1DPC 1R Max speed up to 8200+ MT/s - 1DPC 2R Max speed up to 6400+ MT/s - 2DPC 1R Max speed up to 6400+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

Expansion Slots
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4	PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Other Slots	PCI_E1 slot - Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) - Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) - Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M2_1 slot - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Rear Panel Ports
Back I/O Ports	1 x Clear CMOS Button 2 x USB 5Gbps Type-A 2 x USB 10Gbps Type-A 4 x USB 2.0 1 x 5G LAN 2 x Wi-Fi / Bluetooth 3 x Audio connectors 1 x Flash BIOS Button 1 x HDMI 1 x USB 40Gbps Type-C 1 x USB 20Gbps Type-C

Internal I/O Connectors
Onboard USB	4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports
Other Connectors	1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan 1 x EZ Conn-header (JAF_1) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0)
