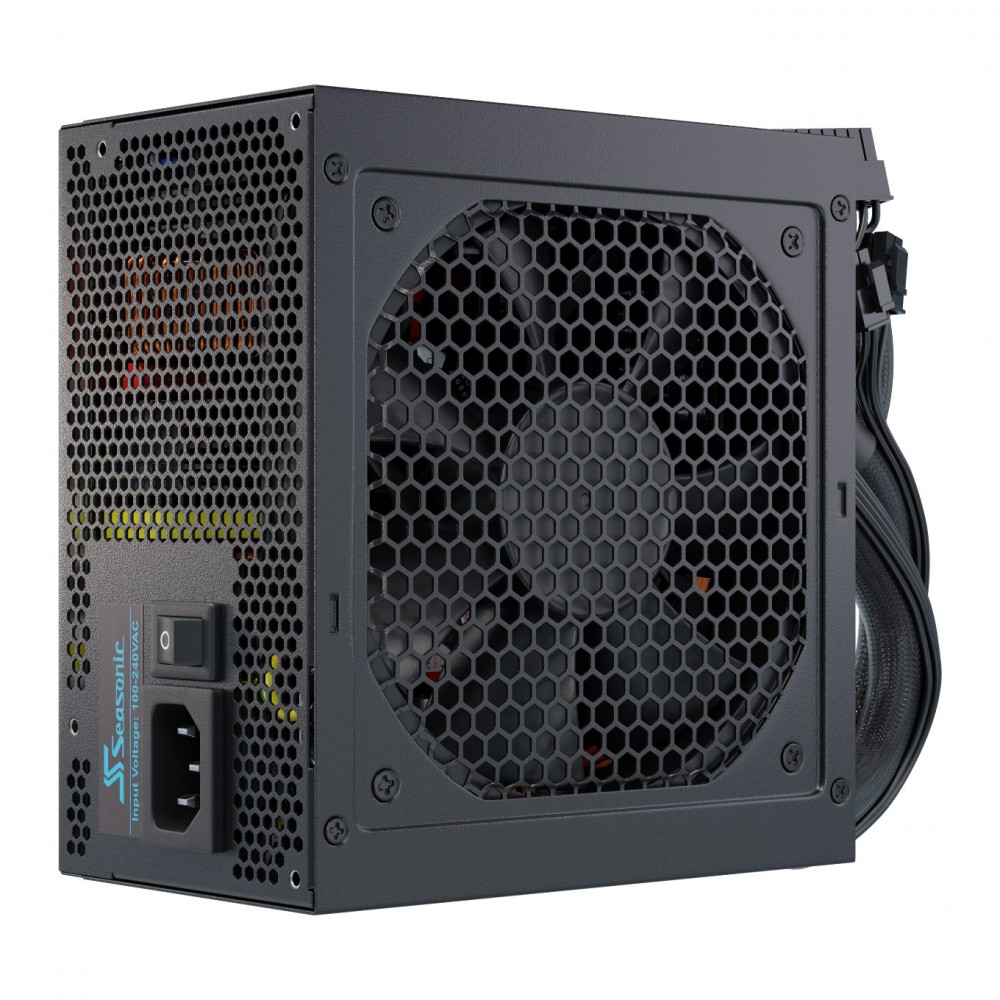

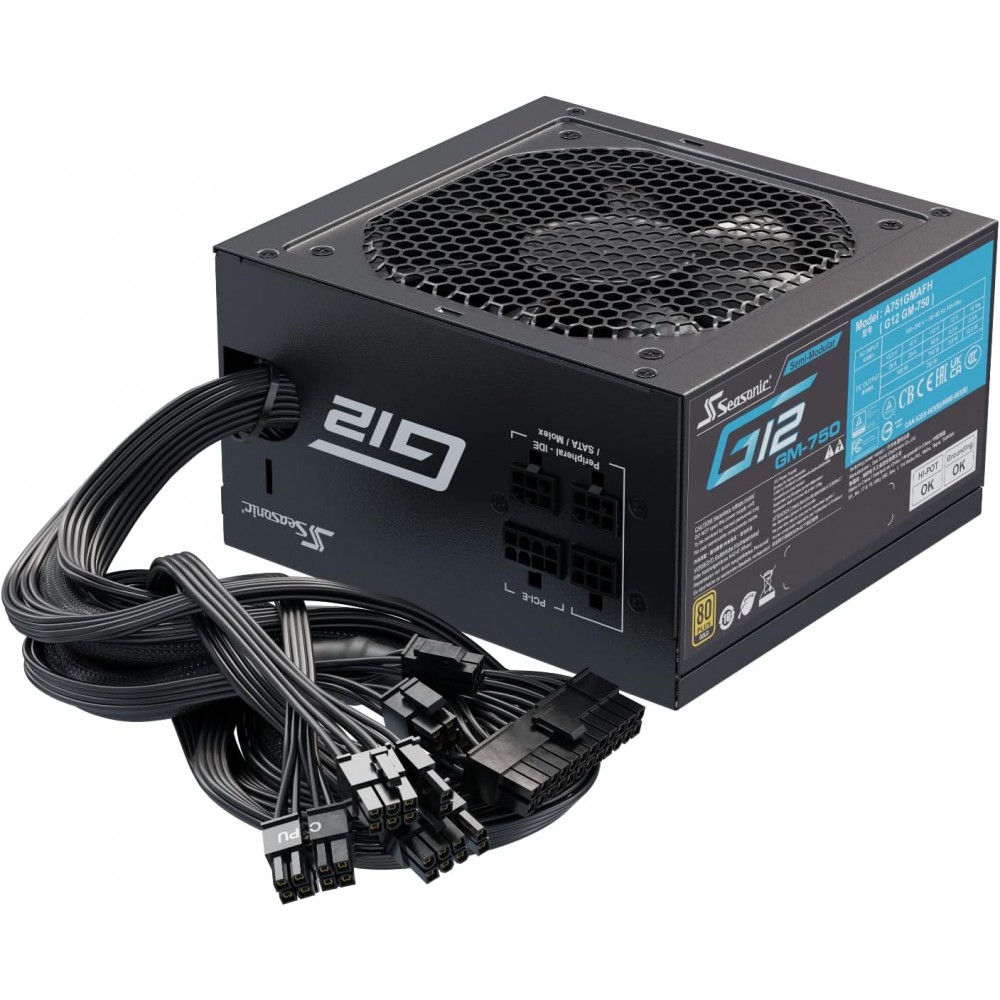

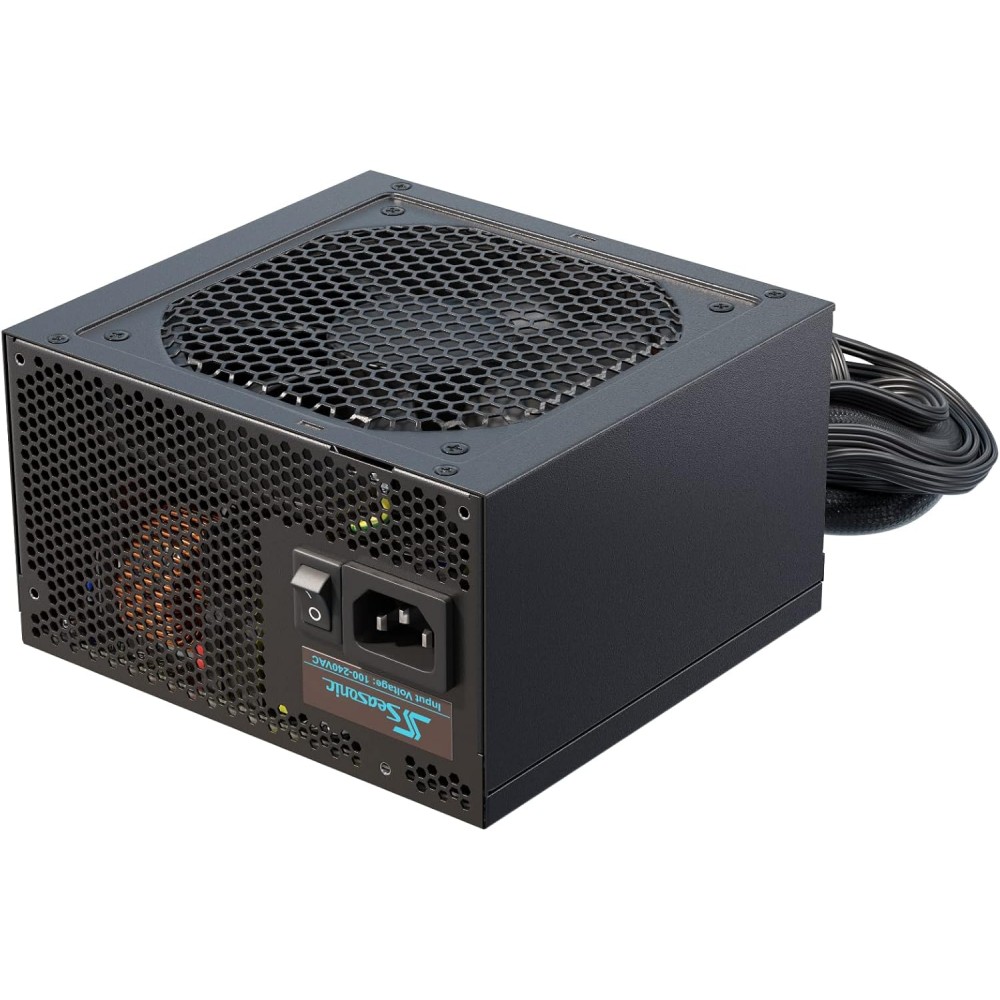

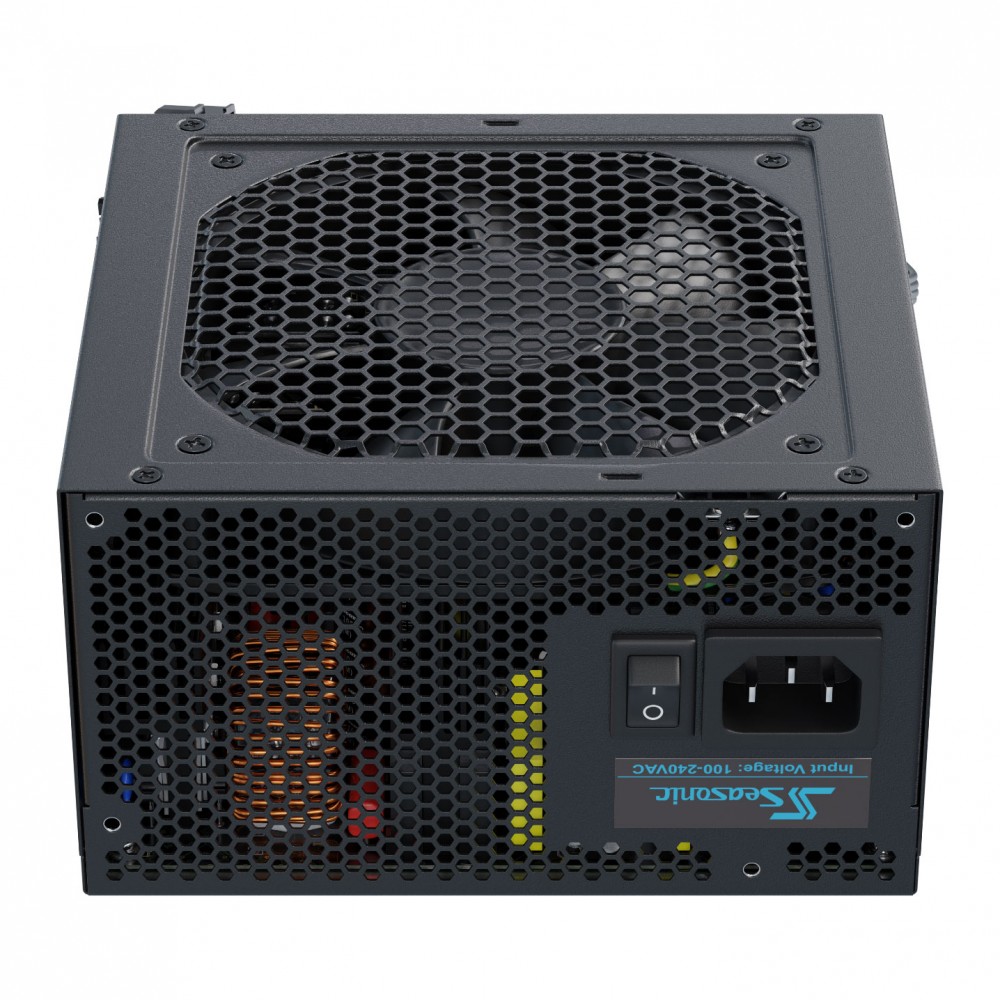

Seasonic G12 GM-750 -750W - 80 Plus Gold - Semi Modular

General Data

Model Number	G12-GM-750 (2024)
80Plus®	Gold
Cybenetics Efficiency Level	TBA
Cybenetics Noise Level	TBA
Form Factor	ATX / EPS
Dimensions	140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information

Fan Size	120 mm
Fan Control	Smart and Silent Fan Control
Fan Bearing	Sleeve Bearing

Cable Information

Modularity

Semi-Modular

Electrical Features

Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
MTBF @ 25 °C, Excl. Fan	100,000 hours
AC Input	Full Range
Protection	OPP, OVP, OCP, SCP

Safety and Environmental

Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output

AC Input

Voltage	100 V - 240 V
Current	9 - 4.5 A
Frequency	50 Hz - 60 Hz

DC Output

Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
Maximum Power	20 A	20 A	62 A	0.3 A	2.5 A
	100 W		744 W	3.6 W	12.5 W
Total Continuous Power	750 W

Cables

550 mm	MB (24 / 20 pins) 1 connector	1 cable attached
600 mm	CPU (8 / 4 pins) 1 connector	2 cables attached
550 mm	PCIe (8 / 6 pins) 1 connector	2 cables attached
550 mm	PCIe (8 / 6 pins) 1 connector	1 cable
720 mm	SATA 3 connectors	2 cables
690 mm	Molex 3 connectors	1 cable
