MSI PRO B650M-B
from
4,999.00 EGP
- Stock: In Stock
- Brand: Msi
- Model: PRO B650M-B
Ask a Question About This Product
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 | |
| Chipset | AMD B650 | |
| Form Factor | mATX 243.84mmx243.84mm | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| Connector & Ports | ||

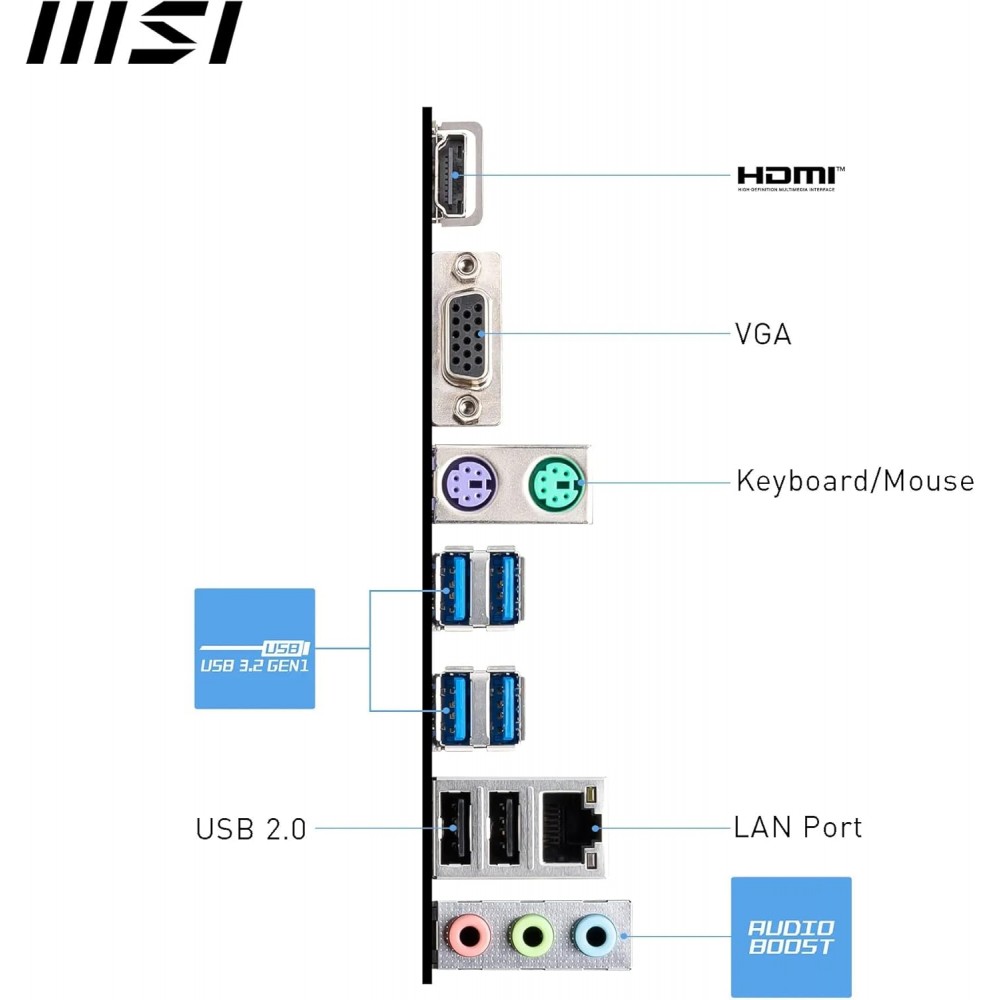

| HDMI | 1x HDMI | |
| VGA (s) | 1x VGA | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) | |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN | |
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Audio | Audio Connectors | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
