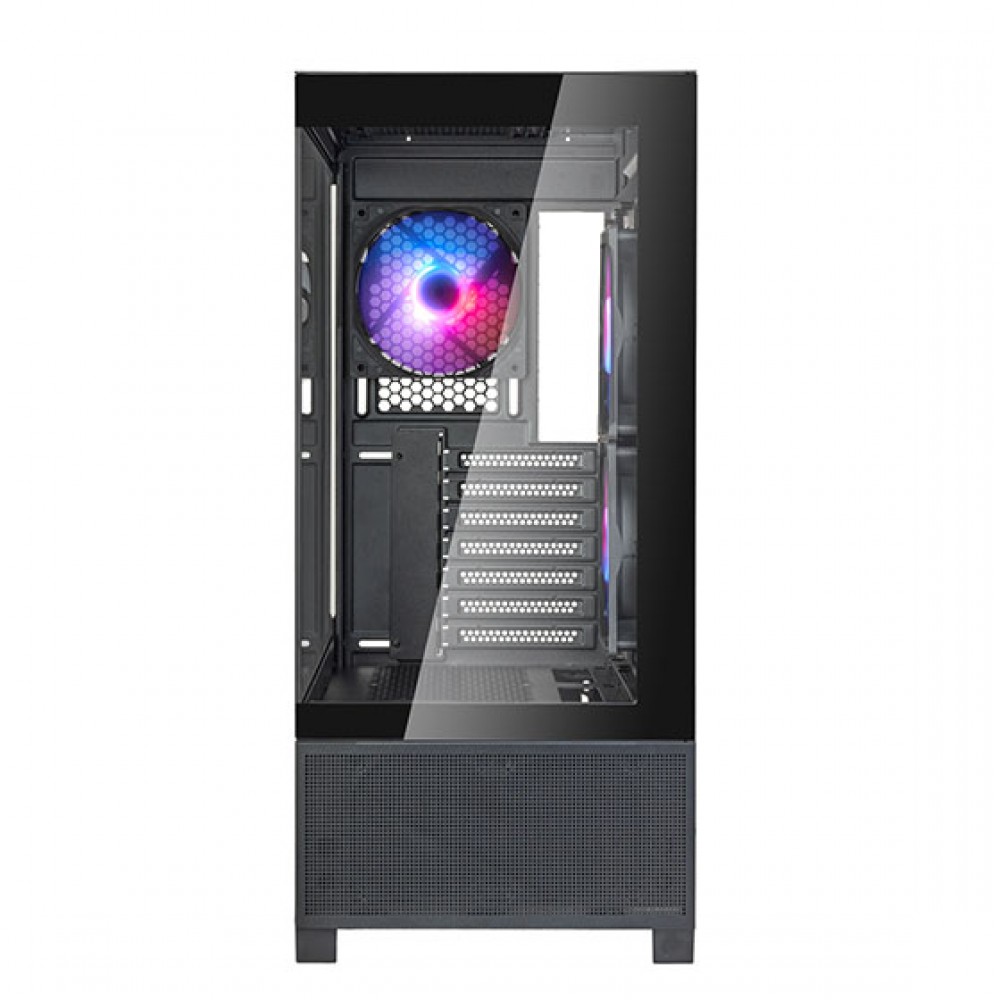

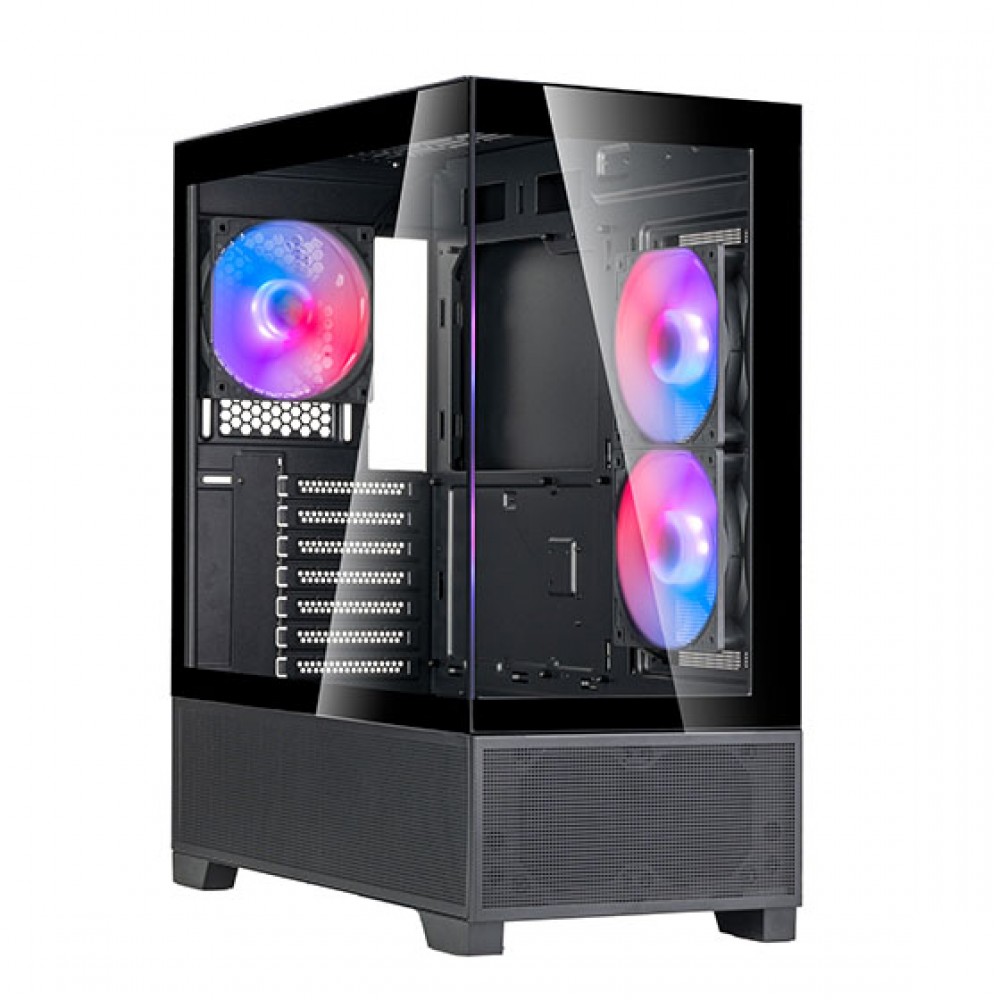

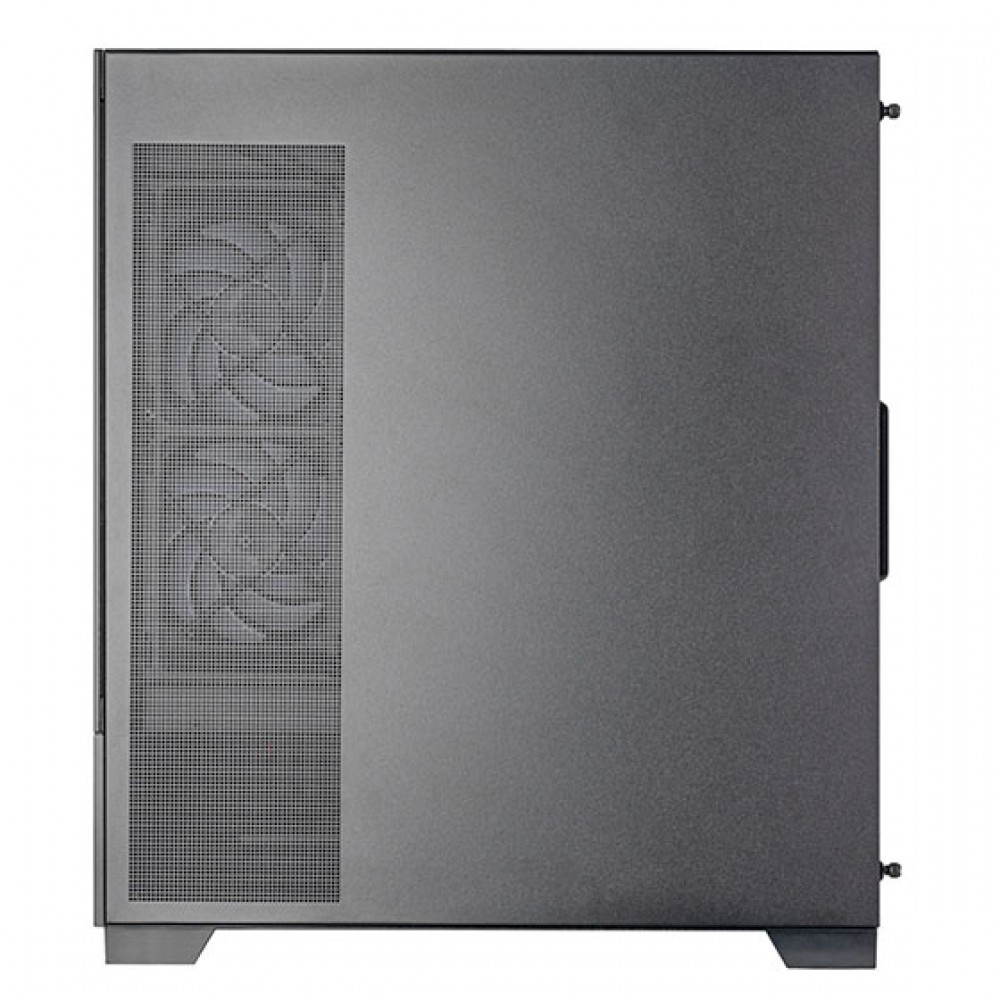

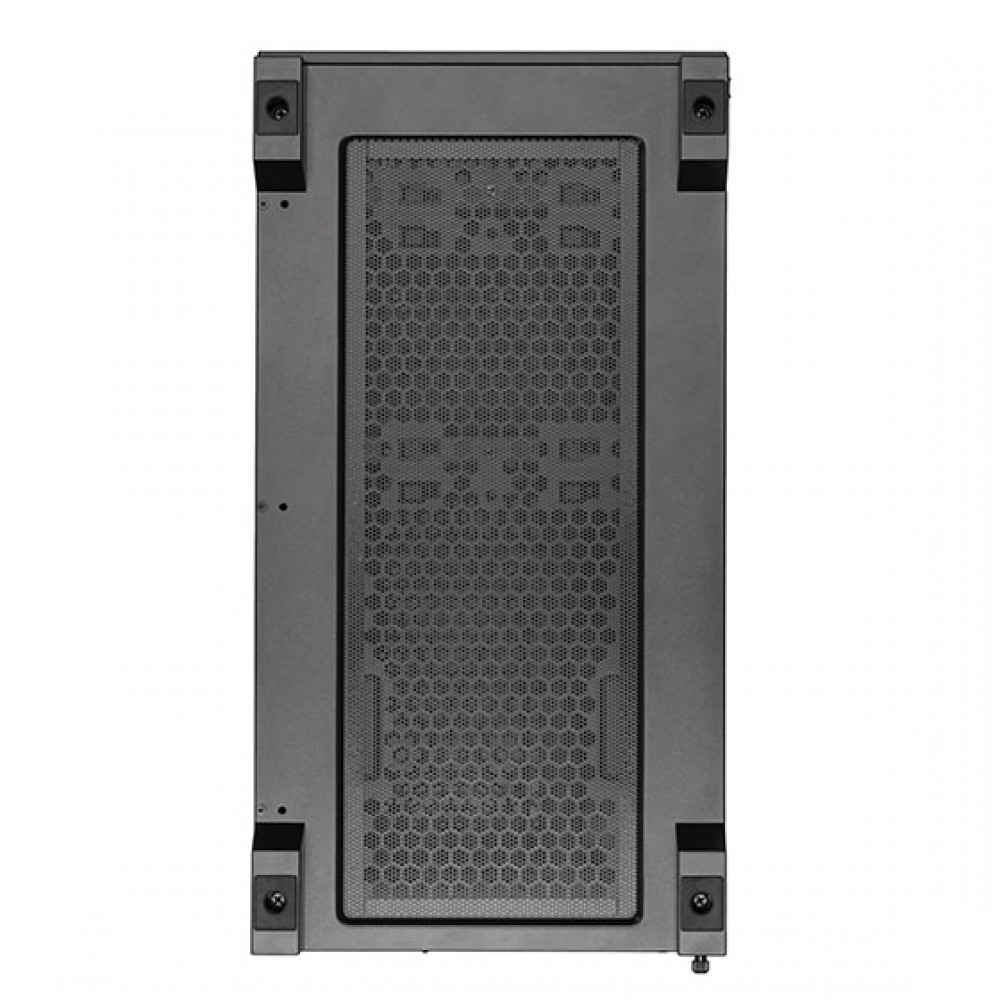

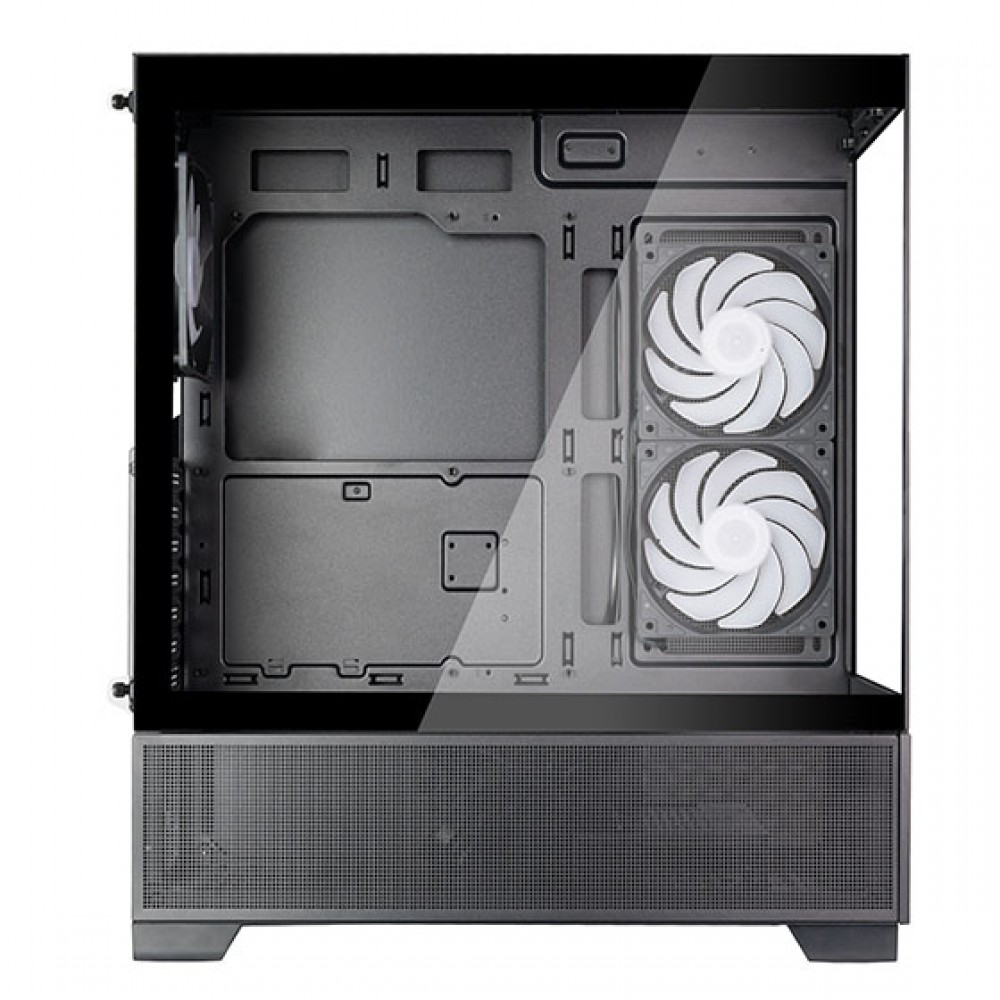

SilverStone Lucid 05 ARGB Mid Tower Case + VIVA 850 Gold PSU

Motherboard

ATX (12" x 9.6), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Drive bay

Internal:

3.5" x 1 / 2.5" x 1 / 2.5" x 2 [1]

3.5" x 1

2.5" x 1

[1]  When installing two 2.5" SSDs in this position, ensure the connectors face the rear to   prevent interference.

Cooling system

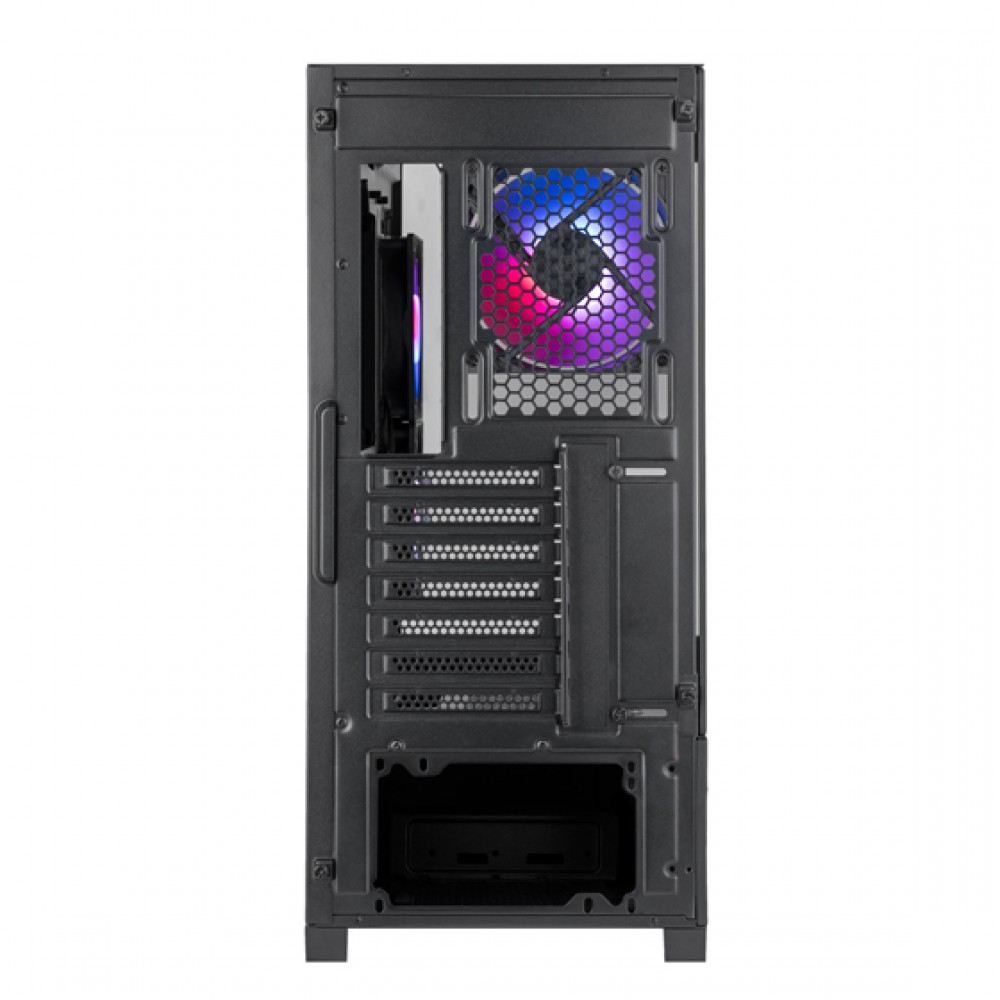

Rear:

120mm x 1

(120mm x 1 ARGB fan included)

Top:

120mm x 3 / 140mm x 2

Internal:

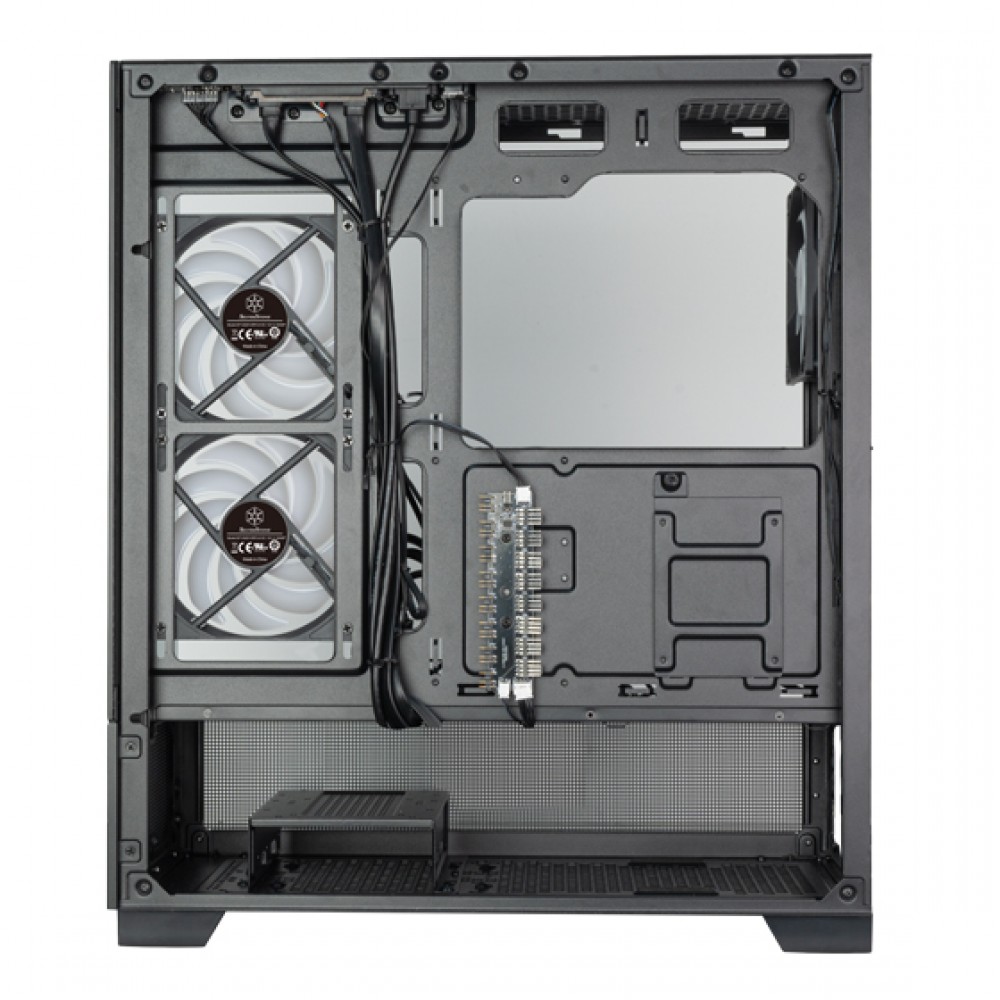

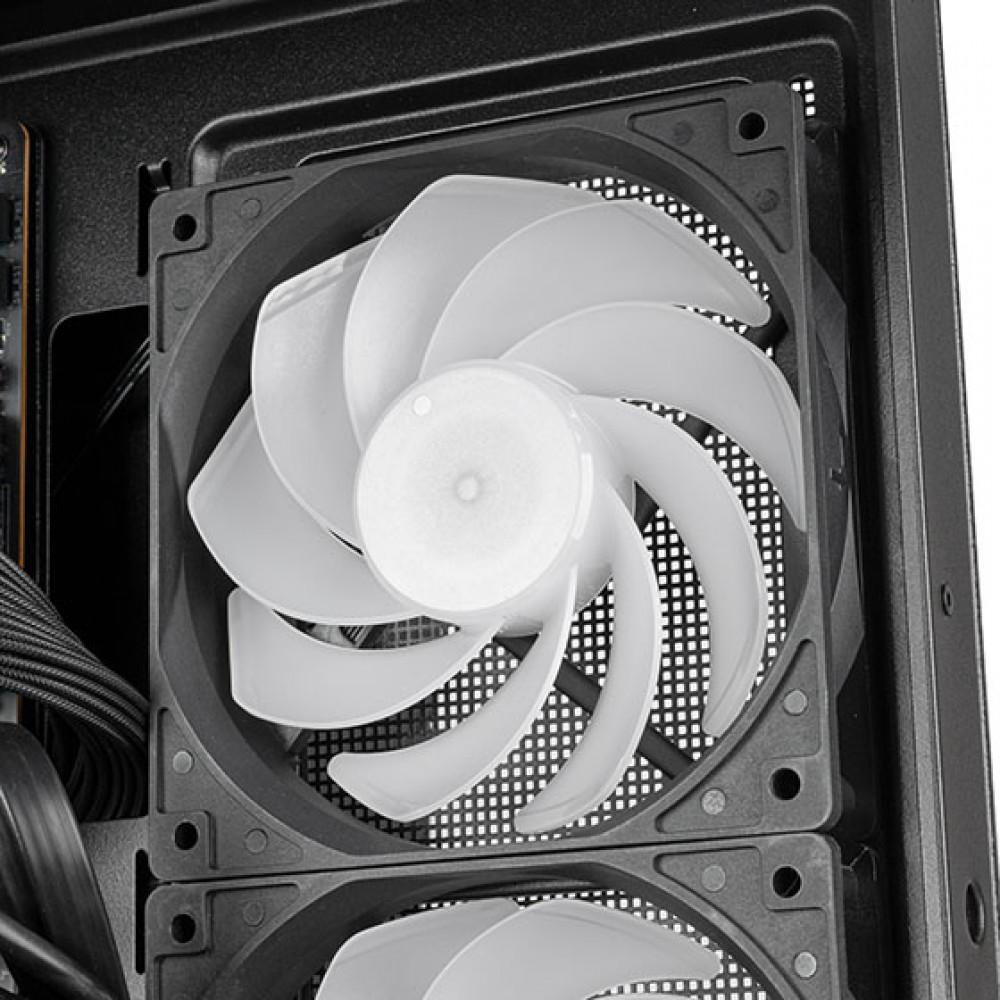

Motherboard Tray:120mm x 2(120mm x 2 ARGB fans included)

PSU Shroud:Top:120mm x 3

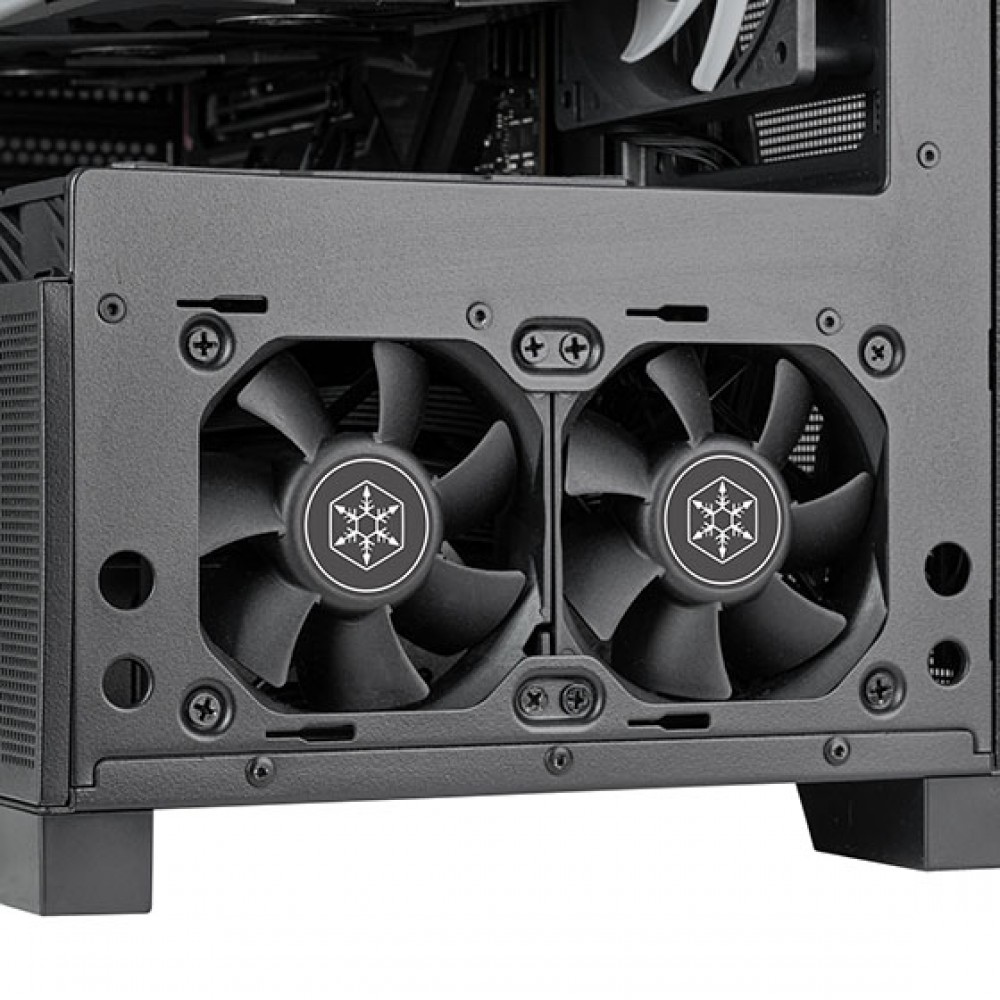

Front:80mm x 2

Radiator support

Rear:

120mm

Top:

120mm / 140mm / 240mm / 280mm / 360mm[2]

Internal:

Motherboard Tray:240mm[3]

[2] When mounting a 360mm radiator in this position, ensure the inlet and outlet tubes are orientated toward the front to prevent interference.

[3] When mounting a 240mm radiator in this position, graphics card clearance is limited to 281mm, including power connectors. Ensure the fans are installed between the radiator and motherboard tray to accommodate this restriction.

Limitation of CPU cooler

173mm

Expansion slot

7

Limitation of expansion card

Length:410mm

Width:179mm

Power supply

SST-VA850-G

Limitation of PSU

200mm

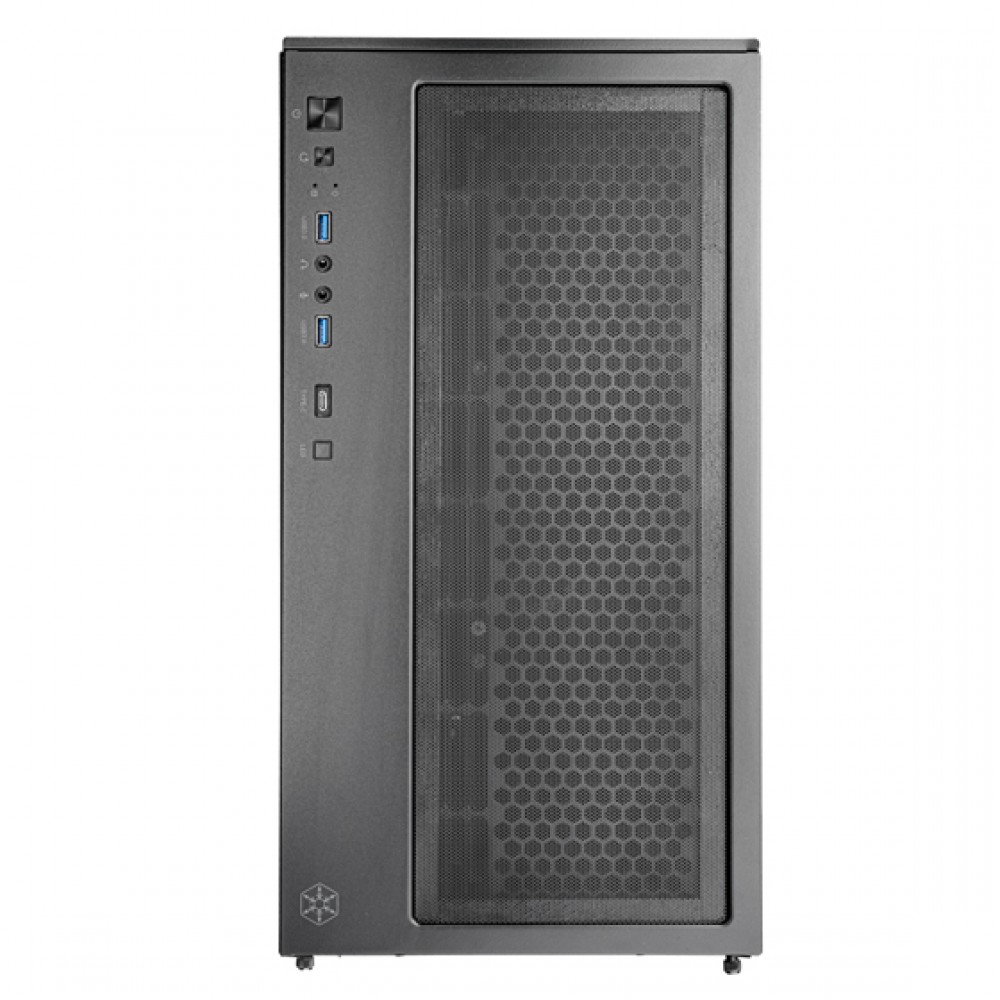

Front I/O port

USB Type-C x 1

USB 3.0 x 2

Audio x 1

Mic x 1

Dimension

220mm (W), x 491.5mm (H), x 427.6mm (D), 46.24 liters

8.66" (W), x 19.35" (H), x 16.83" (D), 46.24 liters

Remark

[1] When installing two 2.5" SSDs in this position, ensure the connectors face the rear to   prevent interference.

[2] When mounting a 360mm radiator in this position, ensure the inlet and outlet tubes are orientated toward the front to prevent interference.

[3] When mounting a 240mm radiator in this position, graphics card clearance is limited to 281mm, including power connectors. Ensure the fans are installed between the radiator and motherboard tray to accommodate this restriction.
