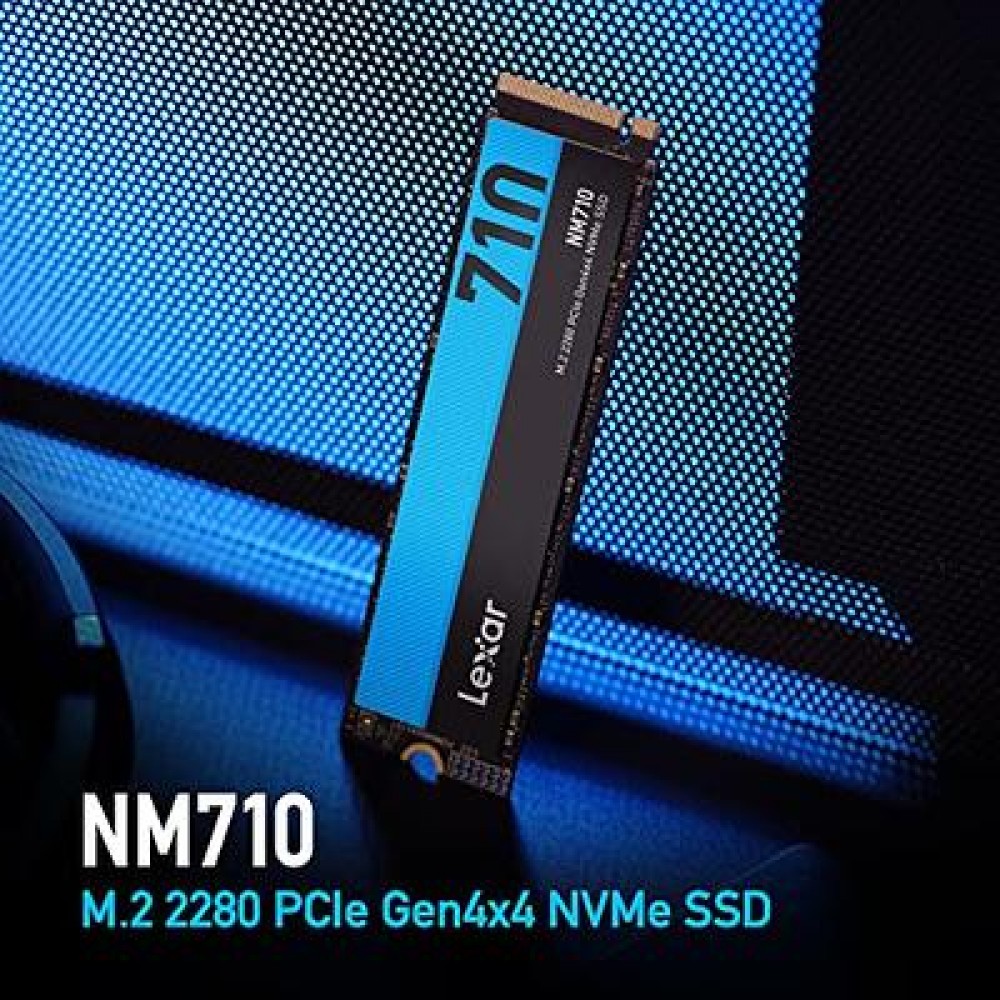

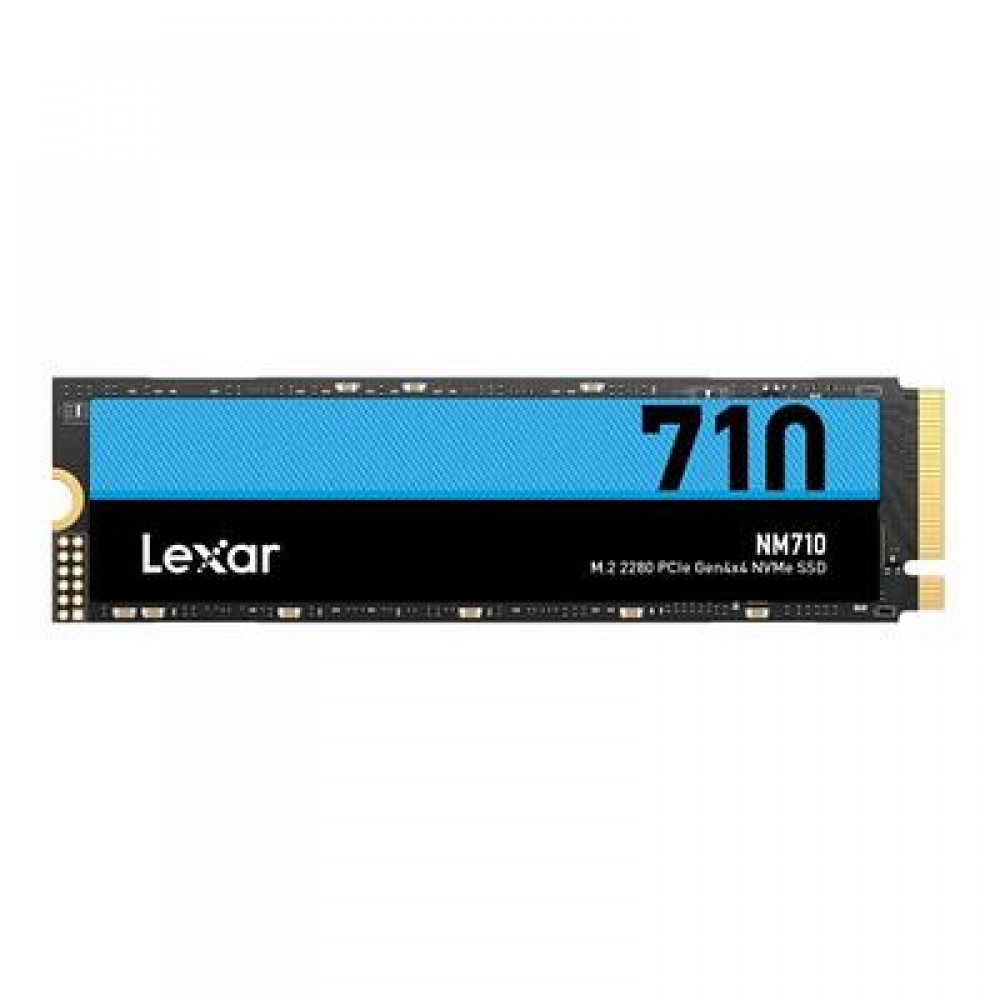

Lexar NM710 500GB M.2 Gen4

Specifications

Capacities

500GB

Form Factor

M.2 2280

Interface

PCIe Gen4x4

Speed

500GB—Sequential read up to 5000MB/s, sequential write up to 2600MB/s¹

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Dimensions (L x W x H)

80 x 22 x 2.45 mm (3.15” x 0.87” x 0.10”)

Weight

7g (0.015lbs)

Warranty

Five-year limited warranty

Shock-resistant

1500G, duration 0.5ms, Half Sine Wave2

Vibration-resistant

10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)2

TBW

500GB: 300TBW

MTBF

1,500,000 Hours

1Up to 5000MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.
2Shock-resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration-resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.
3Comparison based on internal testing. Actual performance may vary.
Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.
Actual usable memory capacity may vary. 1GB equals 1 billion bytes.
Lexar is not liable for any loss of data or images.
