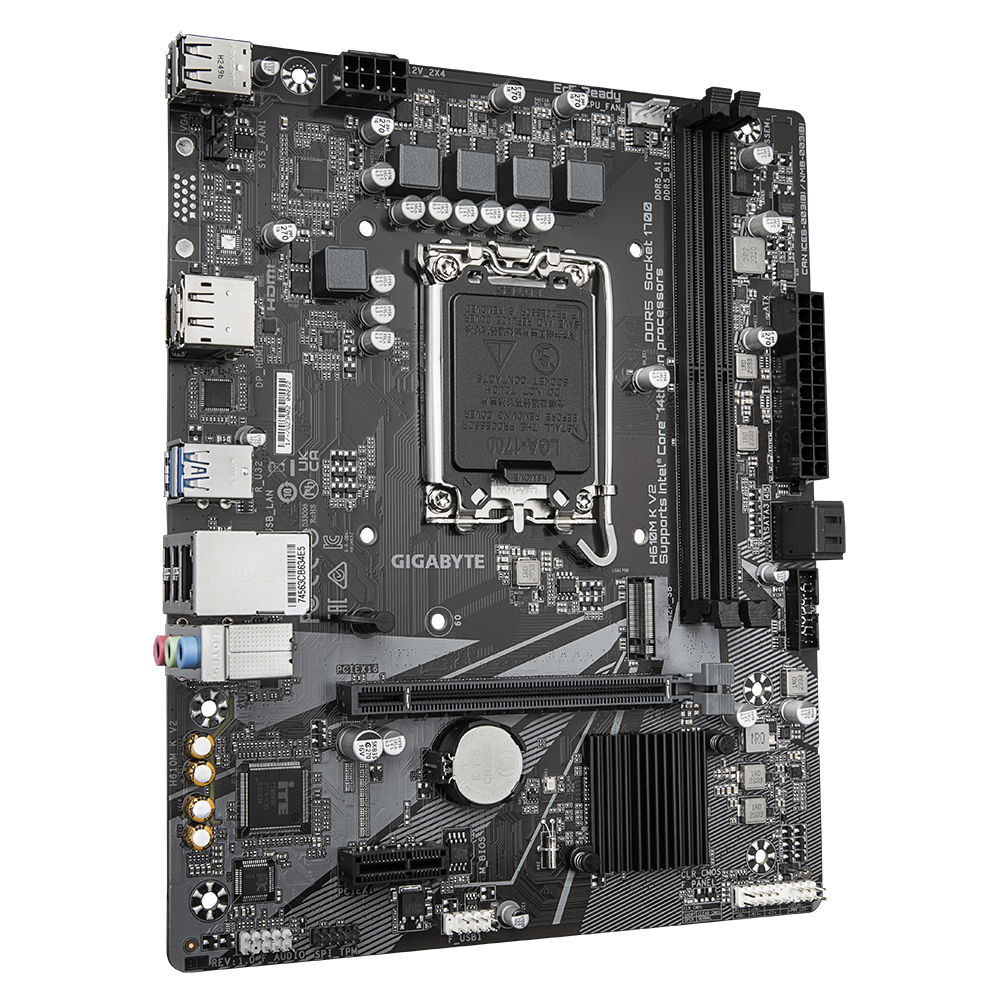

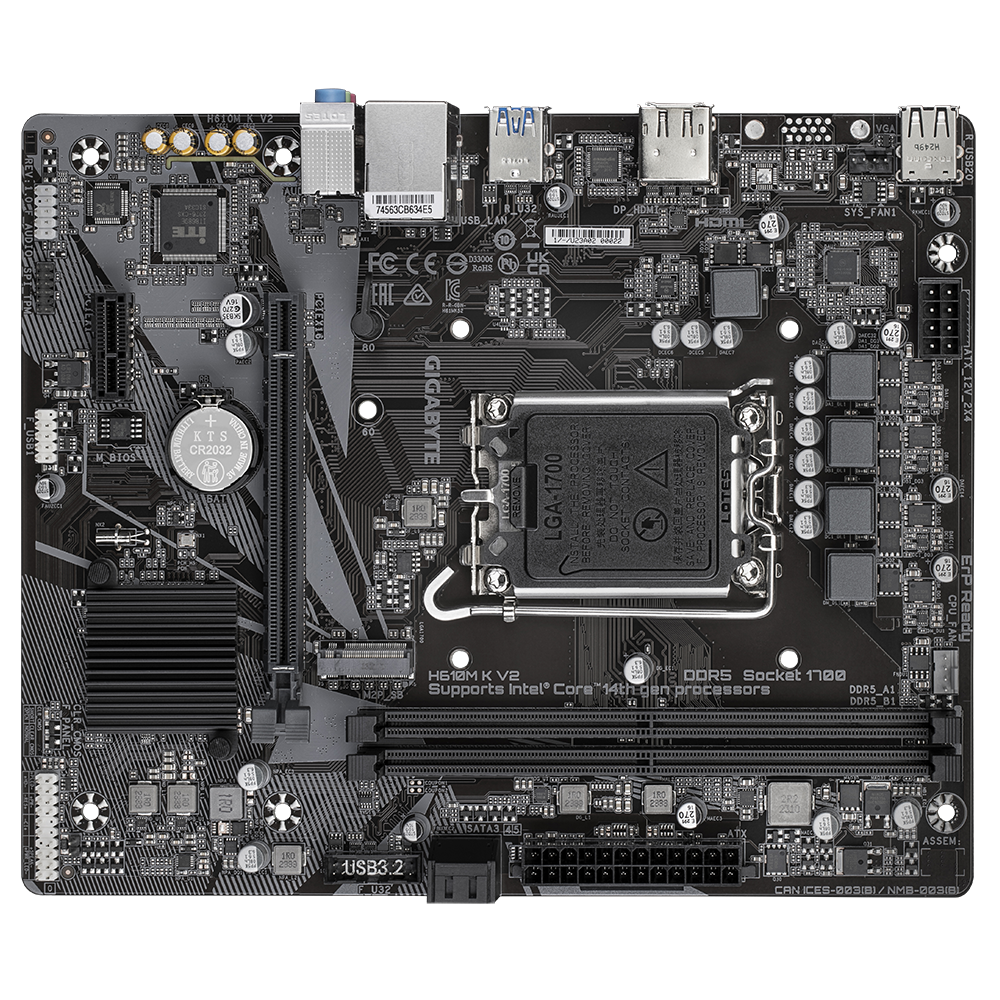

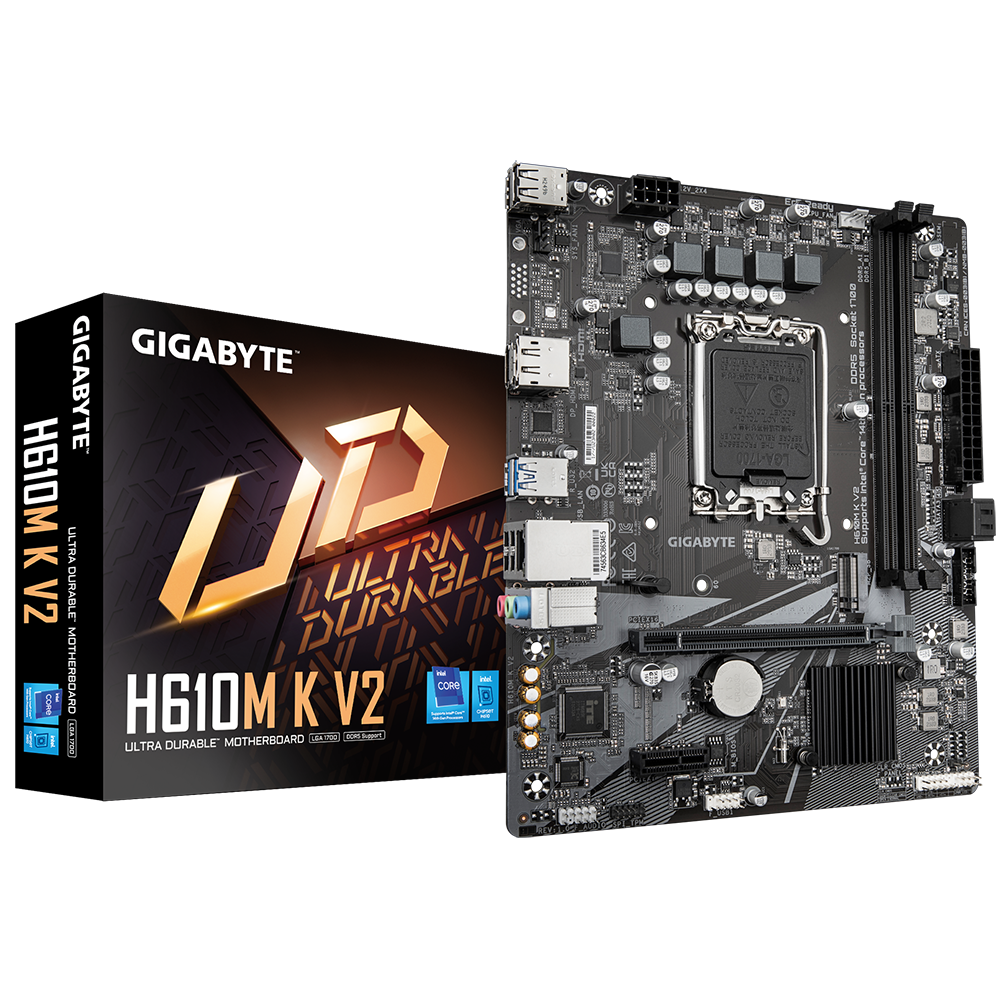

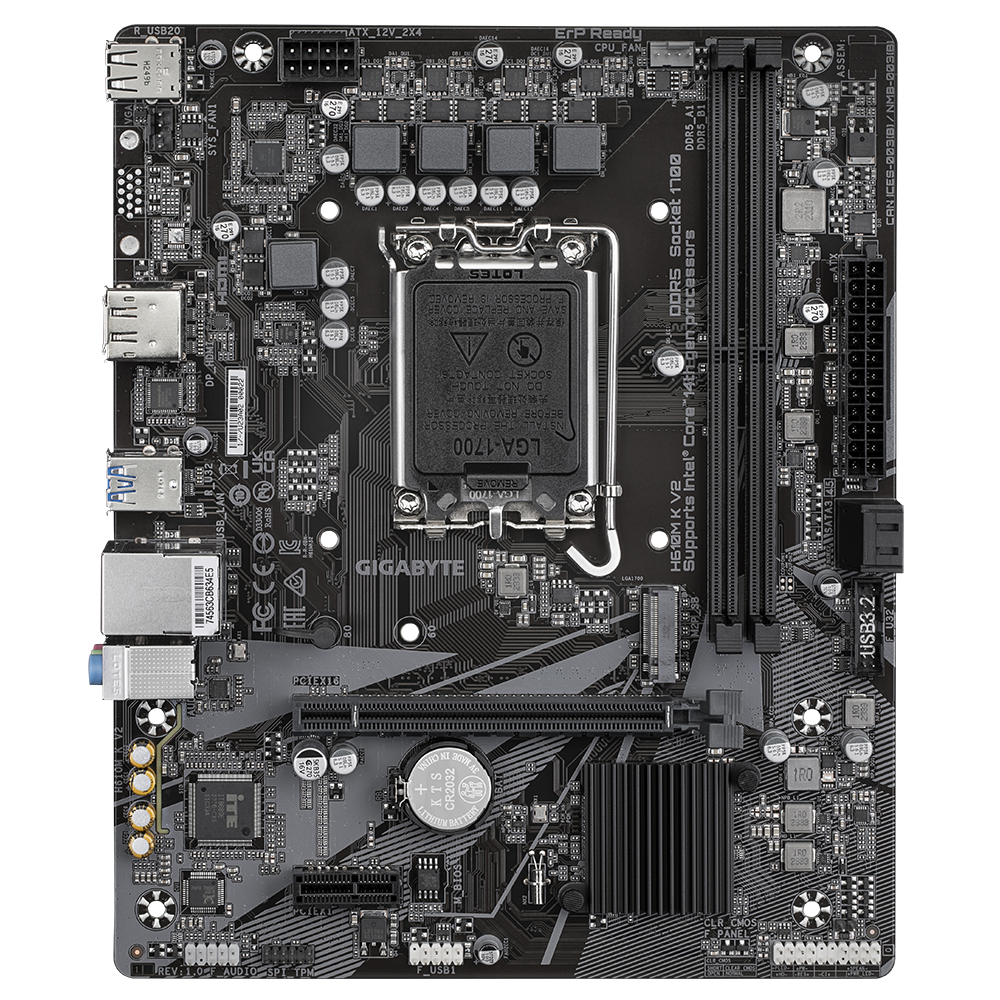

GIGABYTE H610M K V2 DDR5 LGA 1700

Specification

Basic Information

• Brand: GIGABYTE
• Model: H610M K V2
• Color: Black

CPU

• Chipset: Intel H610
• Socket: LGA1700
• Supported Processors: 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron

Memory

• Type: DDR5
• Frequency: 5600/5200/4800/4400 MT/s (non-ECC Un-buffered DIMM)
• Slots: 2 DIMMs
• Maximum Capacity: 128 GB
• Channel Support: Dual Channel
• Optane Support: No

Storage

• M.2 Slot: 1 x M.2 (Type 2280/2260, PCIe 3.0 x4/x2 SSD support)
• SATA Ports: 2 x SATA 6 Gb/s

Graphics

• Integrated Graphics: Intel HD Graphics
• Outputs:
  • 1 x HDMI (4096×2160 @60Hz)
  • 1 x DisplayPort

Expansion Slots

• PCI Express Slots:
  • 1 x PCI Express x16 (PCIe 4.0, running at x16)
  • 1 x PCI Express x1 (PCIe 3.0, running at x1)

Audio

• Audio Chipset: Realtek Audio CODEC
• Channels: 7.1 High Definition Audio

Network

• LAN Chipset: Realtek GbE LAN
• Speed: 10/100/1000 Mbps
• WiFi: No
• Bluetooth: No

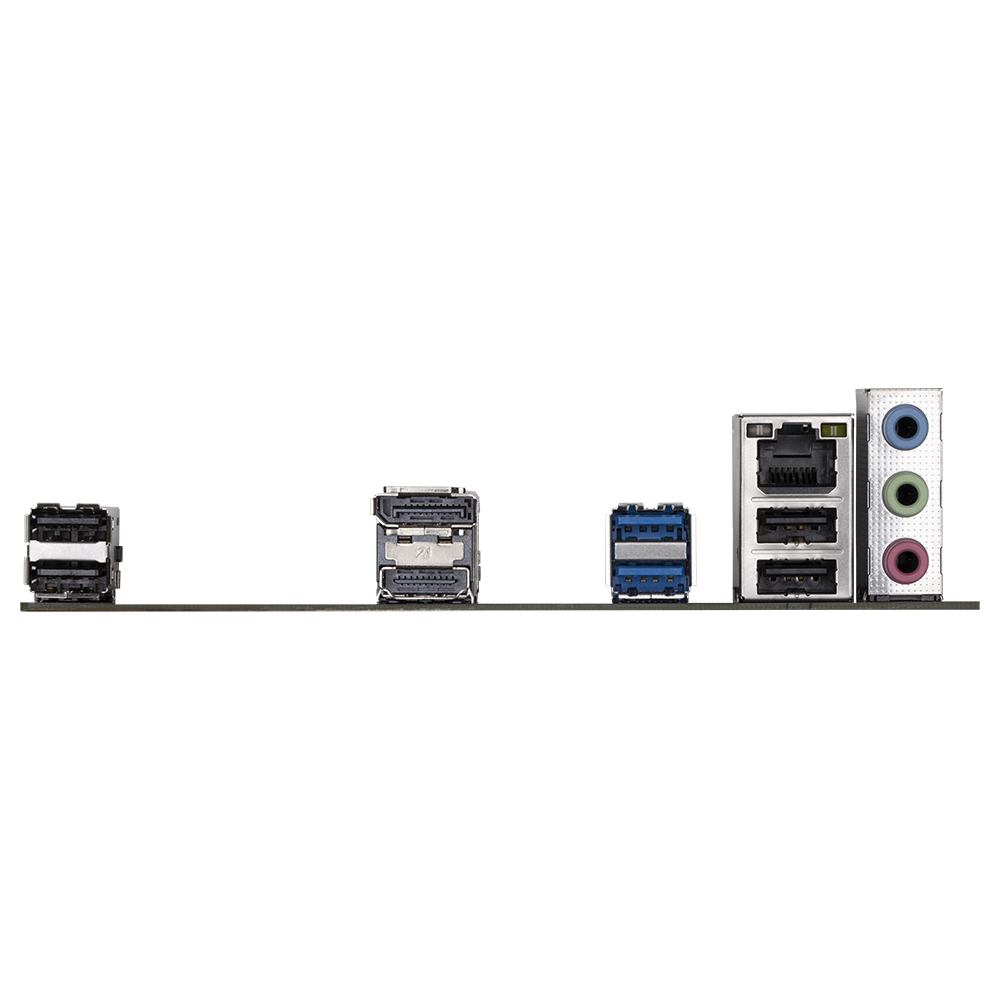

USB & Ports

• USB Ports:
  • 2 x USB 3.2 Gen 1
  • 4 x USB 2.0/1.1
• Other Ports:
  • 1 x TPM Header
  • 1 x HDMI
  • 1 x DisplayPort
  • 2 x SATA Ports

Technical Info

• Form Factor: Micro-ATX
• BIOS:
  • AMI UEFI BIOS
  • 1 x 128 Mbit Flash
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Power Consumption: Approx. 60W

Compatibility

• Operating System: Windows 10, Windows 11
• Compatible CPUs: 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors (LGA1700)

Special Features

• Smart Fan 6: Advanced temperature control with multiple sensors and hybrid fan headers with Fan Stop
• Anti-Sulfur Resistor Design: Enhanced durability
• GIGABYTE App Center: Easy system management and customization
• NVMe Support: PCIe 3.0 x4 M.2 slot
• High-Quality Audio Capacitors: For immersive sound
